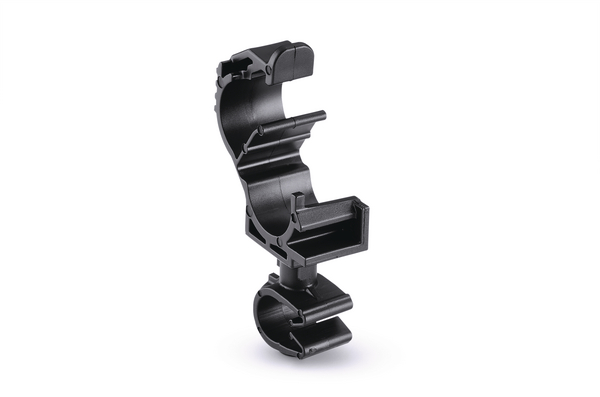

Cable clip with pipe/tube holder, Dmin=8.0mm, Dmax=10.0mm, nom⌀=9.0 mm, nom⌀2=5.0 mm - 9.0 mm
Art.-No. 156-01835 | MOC9FLOC5-9-PA66HIRHSUV-BK |

Copied
Independent rotation allows for adjustable routing orientation.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC9FLOC5-9-PA66HIRHSUV-BK
    Pack Cont. 2500
    Package Content packed in pack
    Type MOC9FLOC5-9
    Variant Clip to Clamp
    Bundle ⌀ 8.0-10.0mm
    Bundle ⌀ 2 max. 9.0mm
    Bundle ⌀ 2 min. 5.0mm
    Bundle ⌀ max. 10.0mm
    Bundle ⌀ min. 8.0mm
    Bundle Diameter Nom. (ND) 9.0 mm
    Bundle Diameter Nom. 2 (ND2) 5.0 mm - 9.0 mm
    Depth (D) 12.0mm
    Height (H) 23.6mm
    Height (H2) 17.2mm
    Length (L) 39.60mm
    Length (L2) 22.7mm
    UV-Stabilised Yes
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026715346
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 203.15kg
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.2921m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121705
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
