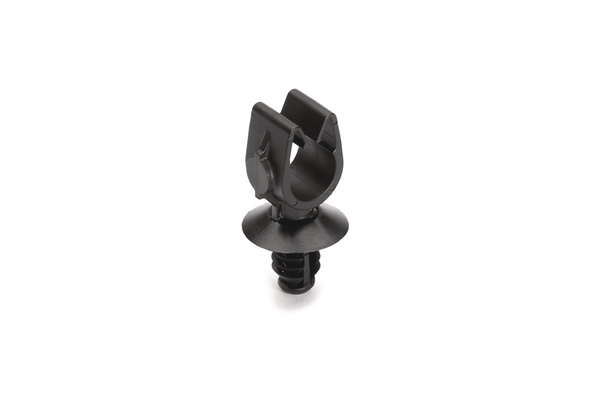

Cable clip for hole (round), T=0.6 - 5.5mm, ⌀6.1 - 6.9 mm/6.35 mm (hexagonal), Dmin=8.0mm, Dmax=10.0mm, nom⌀=9.0 mm

Art.-No. 151-01740

| MOC9FT6.5-PA66HIRHSUV-BK

|

A rotatable dual routing clip that keeps two routings secured and separated.

For fixing and bundling convoluted tubes and pipes
Suitable for nearly every application

Add to watchlist

Downloads

Base Data

Application	These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
Colour	Black (BK)
Fixation Method	Fir Tree
Key product features	removable
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	MOC9FT6.5-PA66HIRHSUV-BK
Package Content	5000
Package Content packed in	pack
Type	MOC9FT6.5
UV-Stabilised	Yes

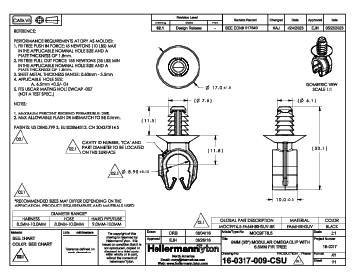

Product Dimensions

Bundle ⌀	8.0-10.0mm
Bundle ⌀ max.	10.0mm
Bundle ⌀ min.	8.0mm
Bundle Diameter Nom. (ND)	9.0 mm
Depth (D)	10.0mm
Fixing Hole Shape	Circular
Height (H)	33.1mm
Hole Depth	0.6mm
Hole Depth	5.5mm
Length (L)	17.0mm
Panel Thickness	0.6 - 5.5mm
for Hole ⌀ (FH)	6.1 - 6.9 mm, 6.35 mm (hexagonal)
for Panel Thickness min - max	0.6 - 5.5 mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
Operating Temperature, 1000h	+160 °C
Operating Temperature, 5000h	+125 °C
Operating Temperature, 500h	+165 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging


Country of Origin	US
GTIN-13 / EAN	4031026571713
Packaging 1 - Qty	5000
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	201.02kg
Packaging 3 - Height (m)	0.20955m
Packaging 3 - Length (m)	0.5175m
Packaging 3 - Qty	5000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0344m³
Packaging 3 - Weight (kg)	7.25kg
Packaging 3 - Width (m)	0.3175m
Packaging 4 - Qty	200000

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	39121702
