MTC46-PA66V0-WH

Art.-No. 151-04820

| MTC46-PA66V0-WH

|

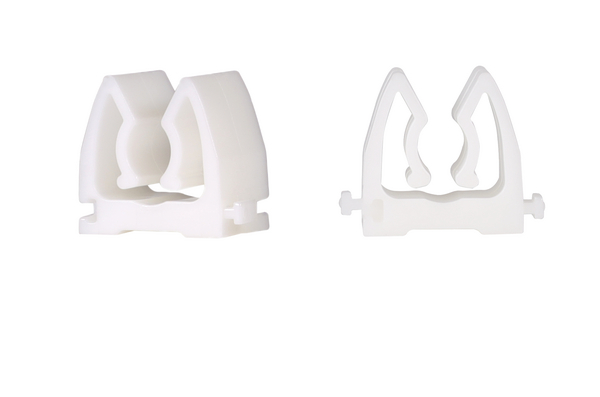

Can secure items with a diameter of 4–6 mm.
The clips can be easily connected by sliding the raised and recessed sections on the sides into place.
When using the clips in a connected configuration, we recommend securing both ends to a panel or similar surface using MTC46FT4-V0 clips with a Fartree mount.

Add to watchlist

Downloads

Base Data

Application	These clips are ideal for securing tubes, hoses, cables, and other items. Since they can be linked together, you can secure multiple items at equal intervals. The top of the clip opens, making it easy to insert and remove tubes.
Colour	White (WH)
Material	Polyamide 6.6 V0 (PA66V0)
PART DESCRIPTION	MTC46-PA66V0-WH
Package Content	100pcs.
Package Content packed in	bag
Type	MTC46

Product Dimensions

Bundle ⌀	4-6mm
Bundle ⌀ max.	6mm
Bundle ⌀ min.	4mm
Height (H)	11.2mm
Length (L)	13.75mm
Length (L2)	11mm
Width (W)	8mm

Specifications

Flammability	UL 94 V0
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	JP
GTIN-13 / EAN	4944387130621

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
