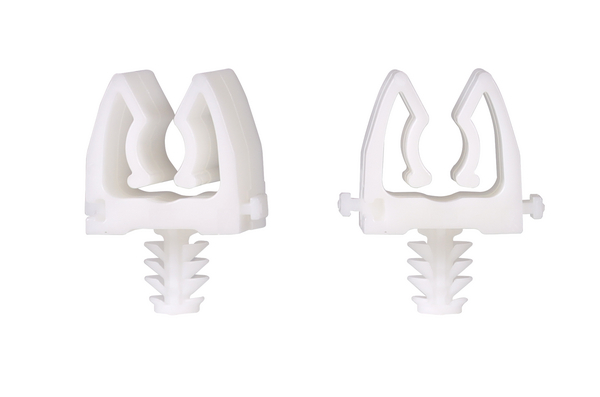

Cable clip

Art.-No. 151-04819

| MTC46FT4-PA66V0-WH

|

For fixing and bundling convoluted tubes and pipes
Suitable for nearly every application

Add to watchlist

Downloads

Base Data

Application	These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
Colour	White (WH)
Fixation Method	Fir Tree
Material	Polyamide 6.6 V0 (PA66V0)
PART DESCRIPTION	MTC46FT4-PA66V0-WH
Package Content	100pcs.
Package Content packed in	bag
Type	MTC46FT4

Product Dimensions

Bundle ⌀	4-6mm
Bundle ⌀ max.	6mm
Bundle ⌀ min.	4mm
Height (H)	17mm
Length (L)	13.75mm
Length (L2)	11mm
Width (W)	8mm
for Hole ⌀ (FH)	M4

Specifications

Flammability	UL 94 V0
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	JP
GTIN-13 / EAN	4944387130638

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	31162906
