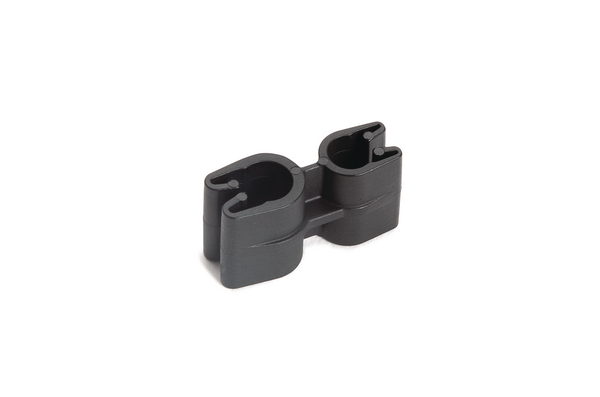

Cable clip, Dmin=4.0mm, Dmax=5.0mm, nom⌀=4.2 mm, nom⌀2=5.1 mm
Art.-No. 151-02451
| PC4X1-5X1-PA66HIRHSUV-BK
Copied
- Dual pipe clip secures two routings together while keeping them separated, to prevent chafing or heat transfer
- Inverted retaining legs and narrow opening prevent inadvertent disengagement
- Controlled flex and angled entry promote easy installation
| Brand Family | PC-Series |
| Color | Black (BK) |
| Description | An ultra-secure routing clip connected to a round or oval fixing for easy insertion into an existing panel hole. |
| PART DESCRIPTION | PC4X1-5X1-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 151-02451 |
| Product family | Products for wires and hoses, Products for parallel/multiple routing |
| Short Desc. | Tube and Pipe Clip 1x4 and 1x5mm Diameter, PA66HIRHSUV, Black, 10,000/ctn |
| Type | PC4X1-5X1 |
| UV Resistant | Yes |
| Depth (imperial) | 0.39" |
| Depth (metric) | 10.0mm |
| Diameter (imperial) | 0.185" |
| Diameter (metric) | 4.7mm |
| Diameter 2 (imperial) | 0.156" |
| Diameter 2 (metric) | 3.95mm |
| Height (imperial) | 0.72" |
| Height (metric) | 18.2mm |
| Length (imperial) | 0.32" |
| Length (metric) | 8.2mm |
| Max. Bundle Diameter (imperial) | 0.2" |
| Max. Bundle Diameter (metric) | 5.0mm |
| Min. Bundle Diameter (imperial) | 0.16" |
| Min. Bundle Diameter (metric) | 4.0mm |
| Nominal Bundle Diameter (imperial) | 0.16 " |
| Nominal Bundle Diameter (metric) | 4.2 mm |
| Nominal Bundle Diameter 2 (imperial) | 0.20 " |
| Nominal Bundle Diameter 2 (metric) | 5.1 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
