Cable clip, T=0.6 - 5.5mm, ⌀8.0 mm, Dmin=6.5mm, Dmax=7.0mm

Art.-No. 133-04043

| PC6.5x2FT8.0-PA66HIRHS-BK

|

Secures two routings together while keeping them separated, to prevent chafing or heat transfer.

Secures two routings together while keeping them separated, to prevent chafing or heat transfer.
Inverted retaining legs and narrow opening prevent inadvertent disengagement.
Controlled flex and angled entry promote easy installation.
Robust arrowhead design provides low insertion effort yet delivers exceptional retention strength in an 8mm hole.

Add to watchlist

Downloads

Base Data

Colour	Black (BK)
Description	This clip features a modular design that can be used individually or lined together to secure multiple pipes or hoses.
Fixation Method	Fir Tree
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	PC6.5x2FT8.0-PA66HIRHS-BK
Package Content	3000pcs.
Package Content packed in	pack
Type	PC6.5x2FT8.0
UV-Stabilised	No

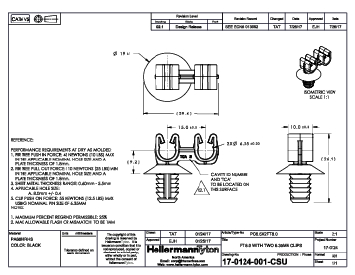

Product Dimensions

Bundle ⌀	6.5-7.0mm
Bundle ⌀ max.	7.0mm
Bundle ⌀ min.	6.5mm
Height (H)	26.9mm
Length (L)	29.6mm
Panel Thickness	0.6 - 5.5mm
Width (W)	10.0mm
for Hole ⌀ (FH)	8.0 mm
for Panel Thickness min - max	0.6 - 5.5 mm

Specifications

CE Certification	No
CSA Certified	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026715001
Packaging 1 - Qty	3000
Packaging 1 - Type	pack
Packaging 3 - Height (m)	0.1730375m
Packaging 3 - Length (m)	0.57785m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0349m³
Packaging 3 - Width (m)	0.34925m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
