29/03/2024

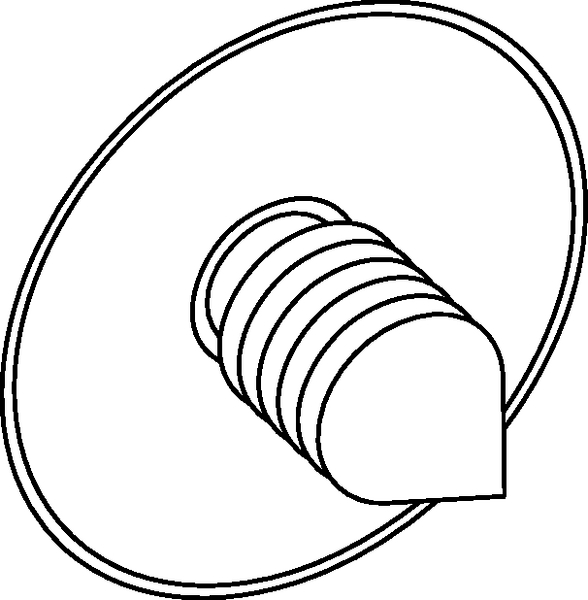

Blind Plug for Panel Thickness 2 - 12 mm, for Hole ∅ 10,2 mm, PE, black
Art.-No. 151-00426 | PLUG10-PE-BK Details

This product is not available anymore.
  • Easy assembly without the need of a tool
  • Disc of the part covers the hole and minimises ingress of dust, dirt and water
Application Our Blind Plugs were developed especially for the automotive industry. Application in trunks, doors, wheel housing and dash panels. Whenever needed to secure a hole against dirt or dust. Sometimes even used for optical reasons.
Colour Black (BK)
Material Polyethylene (PE)
Pack Cont. 4000pcs.
Package Content packed in carton
PART DESCRIPTION PLUG10-PE-BK
Product Group Blind Plugs
Short Description Blind Plug for Panel Thickness 2 - 12 mm, for Hole ∅ 10,2 mm, PE, black
for Hole ∅ (FH) 10.2 mm
for Panel Thickness min - max 2 - 12 mm
Weight/Unit 0.00075kg
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026337746
Packaging 3 - Height (m) 0.2m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 3.86kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.119m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.074
Packaging 4 - Weight (kg) 98.2kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
