Blind plug, ⌀6.2 x 12.2 mm/6.5 x 12.5 mm, T=0.6 - 8.0mm, black, 3000pcs.

Art.-No. 133-02029

| PLUGFTOVALXL-PA66HIRHSUV-BK

|

Disc surrounding push pin minimizes the ingress of dust, dirt and water.

Easy assembly without the need of a tool
Disc of the part covers the hole and minimises ingress of dust, dirt and water
Standard geometry for example fir tree or arrowhead

Add to watchlist

Downloads

More products in this product group:

Blind Plugs

Base Data

Application	Products were developed especially for the automotive industry. Application in trunks, doors, wheel housing and dash panels. Parts are even used for optical reasons.
Colour	Black (BK)
Fixation Method	Blind Plug
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	PLUGFTOVALXL-PA66HIRHSUV-BK
Package Content	3000pcs.
Package Content packed in	carton
Product Group	Blind Plugs
Type	PLUGFTOVALXL
UV-Stabilised	Yes
Weight/Unit	0.0009kg

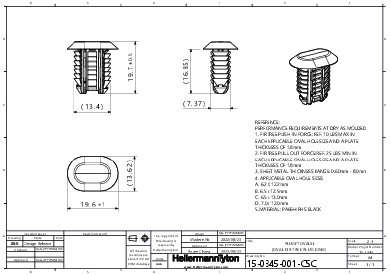

Product Dimensions

Fixing Hole Shape	Oval
Height (H)	19.7mm
Height (H2)	16.85mm
Hole Depth	0.6mm
Hole Depth	8.0mm
Length (L)	19.6mm
Panel Thickness	0.6 - 8.0mm
Width (W)	13.62mm
for Hole ⌀ (FH)	6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
for Panel Thickness min - max	0.6 - 8 mm

Specifications

CE Certification	No
ELV compliant (Article 4 - 2)	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
Operating Temperature, 1000h	+160 °C
Operating Temperature, 5000h	+125 °C
Operating Temperature, 500h	+165 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging


Country of Origin	US
Customs Number	39269097
GTIN-13 / EAN	4031026520278
Packaging 1 - Qty	3000
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	2.700001kg
Packaging 3 - Height (m)	0.1508125m
Packaging 3 - Length (m)	0.43656m
Packaging 3 - Qty	3000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0176m³
Packaging 3 - Weight (kg)	2.990001kg
Packaging 3 - Width (m)	0.2667m
Packaging 4 - Height (m)	1.201m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	84000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.153m³
Packaging 4 - Weight (kg)	105.72kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	31162312
