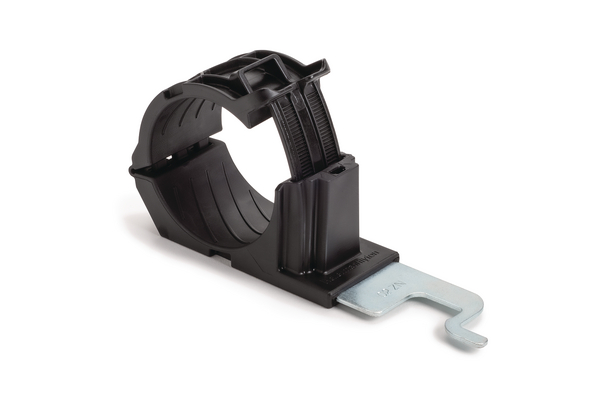

P-clamp short, Dmin=36.0mm, Dmax=51.0mm, 180°, black, 140pcs.
Art.-No. 151-03622
| RCDHANGERFS-PA66HIRHSUV/ZN-BK
Copied
- Series 6-specific hanger mounts in an instant, significantly reducing install time and repetitive strain injuries.
- Impact modified, heat and UV stabilized PA66 provides long-term durability in extreme solar applications.
- One-piece ratchet closure design allows for easy installation during pre- or final assembly.
- Release feature allows for quick adjustments and maintenance.
More products in this product group:
| Application | The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations. |
| Brand Family | Ratchet Clamps |
| Color | Black (BK) |
| Compatible with | First Solar |
| Description | The Series 6 Ratchet Clamp offers one-handed, toolless simplicity and size versatility for managing wires and cables on First Solar modules. The robust design and solar-optimized materials make it ideal for heavy duty, outdoor applications. The one-piece adjustable clamp can be closed by hand to the desired diameter, replacing multiple sizes of single-diameter fasteners. The integrated release feature enables easy and nondestructive removal of cables by inserting a flat-head screwdriver. This allows the clamp to be reused without removing it. |
| Key product features | vibration absorbing, reusable, removable, for multiple routing |
| Min. Tensile Strength (imperial) | 100lbs |
| Min. Tensile Strength (metric) | 445N |
| PART DESCRIPTION | RCDHANGERFS-PA66HIRHSUV/ZN-BK |
| Packaging Type | box |
| Part No. | 151-03622 |
| Product family | RPC Hangers |
| Product family | Products for wires and hoses |
| Short Desc. | Series 6 Ratchet Clamp, 1.42 - 2.0" Bundle Dia, 1.97" x 1.18" Hook, PA66HIRHSUV/ZN, Black, 140/ctn |
| Type | RCDHANGERFS |
| UV Resistant | Yes |
|
|
|
| Angle | 180 |
| Fixation Method | Mounting Hanger |
| Length (imperial) | 7.86" |
| Length (metric) | 199.7mm |
| Length 2 (imperial) | 1.97" |
| Length 2 (metric) | 50.0mm |
| Max. Bundle Diameter (imperial) | 2.01" |
| Max. Bundle Diameter (metric) | 51.0mm |
| Min. Bundle Diameter (imperial) | 1.42" |
| Min. Bundle Diameter (metric) | 36.0mm |
| Width (imperial) | 1.37" |
| Width (metric) | 34.9mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV, ZN |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV), Zinc plated (ZN) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| UL File Number [Logo] | E64139 [cULus] |
| UL Listed (US and Canada) | Yes |
| UL Listed (US) | Yes |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
