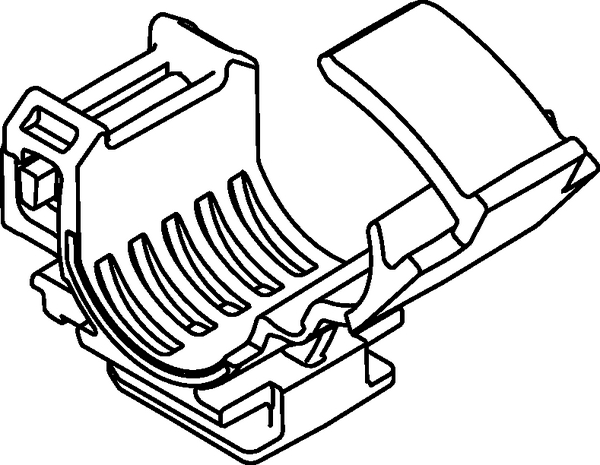

Ratchet O-Clamp
Art.-No. 151-04071 | ROC15-19CLIP17-PA66HIRHSUV-BK |

Copied

    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Connector Clip
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION ROC15-19CLIP17-PA66HIRHSUV-BK
    Pack Cont. 1000Pack
    Package Content packed in bag
    Product Group Ratchet O-Clamp
    Type ROC15-19CLIP17
    Type of connection USCAR17
    Bundle ⌀ 15.0-19.0mm
    Bundle ⌀ max. 19.0mm
    Bundle ⌀ min. 15.0mm

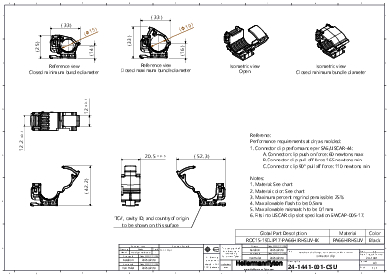

    Height (H) 42.2mm
    Length (L) 52.3mm
    Min.Tensile Strength 445N
    UV-Stabilised Yes
    Width (W) 20.5mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026764566
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.2921m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121705
