Ratchet O-Clamp

Art.-No. 151-04268

| ROC15-19FTOVAL-PA66HIRHSUV-BK

|

Add to watchlist

Downloads

More products in this product group:

Ratchet O-Clamp

Base Data

Colour	Black (BK)
Fixation Method	Fir Tree
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Min.Tensile Strength	445N
PART DESCRIPTION	ROC15-19FTOVAL-PA66HIRHSUV-BK
Package Content	1000Pack
Package Content packed in	bag
Product Group	Ratchet O-Clamp
Type	ROC15-19FTOVAL
UV-Stabilised	Yes
Weight/Unit	0.004547kg

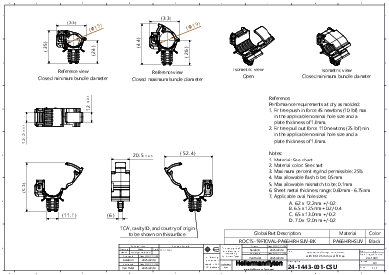

Product Dimensions

Bundle ⌀	15.0-19.0mm
Bundle ⌀ max.	19.0mm
Bundle ⌀ min.	15.0mm
Height (H)	53mm
Length (L)	52.4mm
Panel Thickness	0.6 - 6.75mm
Width (W)	20.5mm
for Hole ⌀ (FH)	6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
for Panel Thickness min - max	0.6 - 6.8 mm

Specifications

CE Certification	No
CSA Certified	No
ELV compliant (Article 4 - 2)	Yes
Flammability	UL 94 HB
Halogen-free	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Reusable (Yes/No)	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging


Country of Origin	MX
Customs Number	39269097
GTIN-13 / EAN	4031026764597
Packaging 1 - Height (m)	0.09m
Packaging 1 - Length (m)	0.645m
Packaging 1 - Qty	1000
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.0319275m³
Packaging 1 - Weight (kg)	4.614888kg
Packaging 1 - Width (m)	0.55m
Packaging 3 - Height (m)	0.368m
Packaging 3 - Length (m)	0.584m
Packaging 3 - Qty	3000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.083m³
Packaging 3 - Weight (kg)	14.715464kg
Packaging 3 - Width (m)	0.386m
Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	36000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	198.592kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162306
