Ratchet O-Clamp
Art.-No. 151-04647 | ROC18.5-22.5ATI2-PA66HIRHSUV/SS304-BK |

Copied
Ratchet P-Clamps in multiple configurations to handle a wide range of diameters and applications.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Connector Clip
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Stainless Steel (SS304)
    Min.Tensile Strength 445N
    PART DESCRIPTION ROC18.5-22.5ATI2-PA66HIRHSUV/SS304-BK
    Package Content 200pcs.
    Package Content packed in box
    Product Group Ratchet O-Clamp
    Type ROC18.5-22.5ATI2
    UV-Stabilised Yes
    Bundle ⌀ 18.5-22.5mm
    Bundle ⌀ max. 22.5mm
    Bundle ⌀ min. 18.5mm

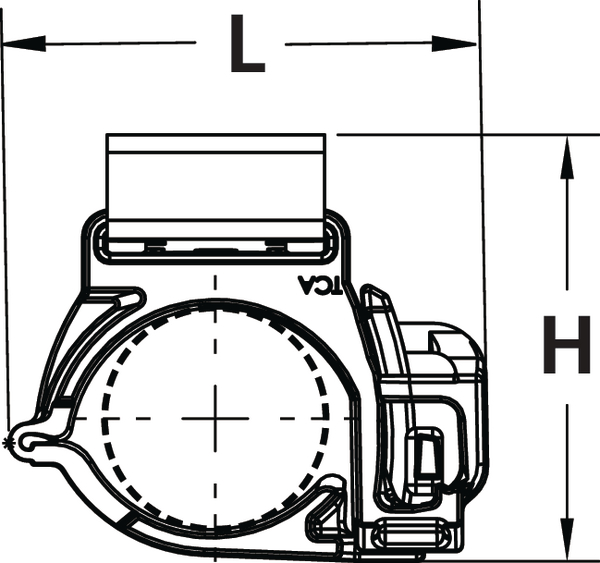

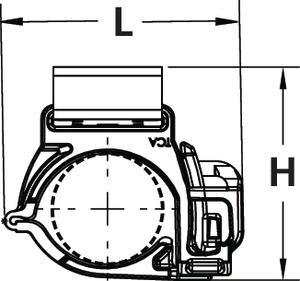

    Height (H) 33mm
    Length (L) 37mm

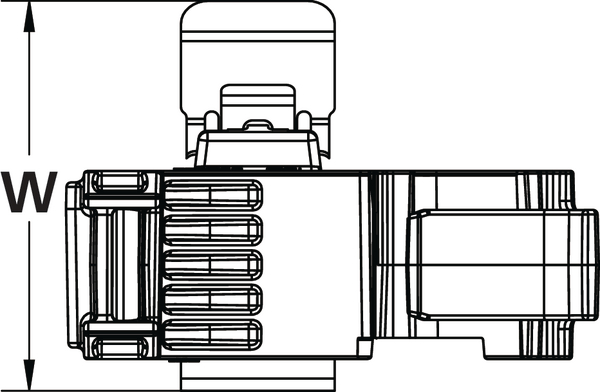

    Width (W) 42.5mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026784182
    Packaging 1 - Qty 200
    Packaging 3 - Height (m) 0.1397m
    Packaging 3 - Length (m) 0.51276m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0223m³
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121705
