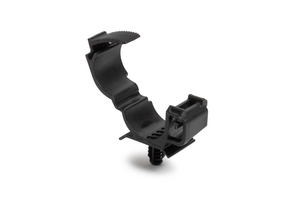

Ratchet O-Clamp
Art.-No. 151-04403 | ROC18.5-22.5FT6.5-PA66HIRHSUV-BK |

Copied
Ratchet P-Clamps in multiple configurations to handle a wide range of diameters and applications.

    Package size
    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Min.Tensile Strength 445N
    PART DESCRIPTION ROC18.5-22.5FT6.5-PA66HIRHSUV-BK
    Package Content 10pcs.
    Package Content packed in bag
    Product Group Ratchet O-Clamp
    Type ROC18.5-22.5FT6.5
    UV-Stabilised Yes
    Bundle ⌀ 18.5-22.5mm
    Bundle ⌀ max. 22.5mm
    Bundle ⌀ min. 18.5mm
    Fixing Hole Shape Circular

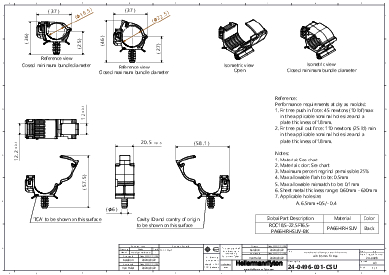

    Height (H) 83.7mm
    Length (L) 58.1mm
    Panel Thickness max. 0.6 - 6.0mm
    Width (W) 28.9mm
    for Hole ⌀ (FH) 6.1 - 7.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026756851
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
