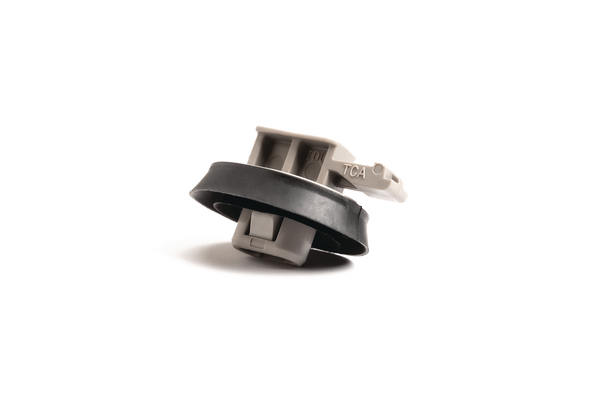

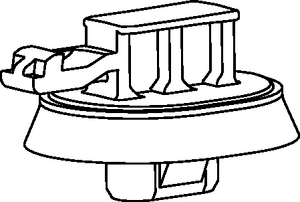

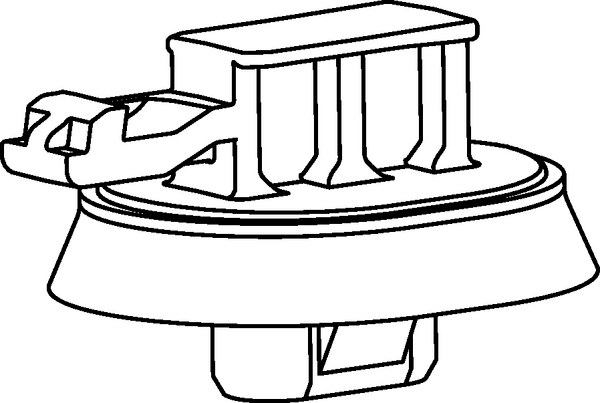

Connector clip, EWCAP-005-7, grey/black, 4000Carton
Art.-No. 151-02996 | SAHOVAL1.4TCC7-PA66HIRHS/TPE-BK/GY

Once installed, perpendicular arrowhead arms reduce movement and will not collapse when exposed to water or load.
Integrated dual seal meets IP65 for protection against water, dust, chemicals, air and sound.
Superior design and high-spec materials maintain routing position to deliver consistent performance in the most rugged applications.
Low-profile design saves 5 mm of height when installed.
Sealed arrowhead meets USCAR44 push in, pull off and sealing standards.

Application	HellermannTyton sealed clips and ties are constructed of engineered nylon with a dual TPE (thermo plastic elastomer) seal. The combination of dual seal and engineered arrowhead provide superior sealing performance for applications where protection from moisture and debris is essential.
Brand Family	CC-Series
Color	Gray (GY), Black (BK)
Description	HellermannTyton sealed clips and ties are constructed of engineered nylon with a dual TPE (thermo plastic elastomer) seal. The combination of dual seal and engineered arrowhead provide superior sealing performance for applications where protection from moisture and debris is essential.
PART DESCRIPTION	SAHOVAL1.4TCC7-PA66HIRHS/TPE-BK/GY
Packaging Type	box
Part No.	151-02996
Product family	Connector Clips
Product family	Connector Accessory, Sealed products
Short Desc.	Connector Clip with Oval Arrowhead, 1.2-1.8mm Panel Thick., 6.5x12.5mm Hole Dia, PA66HIRHS/TPE, Black, 4000/ctn
Type	SAHOVAL1.4TCC7
UV Resistant	No

Fixation Method	Arrowhead
Height (imperial)	0.69"
Height (metric)	17.55mm
Length (imperial)	1.07"
Length (metric)	27.28mm
Max. Bundle Diameter (imperial)	0"
Max. Hole Depth (imperial)	0.07"
Max. Hole Depth (metric)	1.8mm
Max. Panel Thickness (imperial)	0.07"
Max. Panel Thickness (metric)	1.8mm
Min. Bundle Diameter (imperial)	0"
Min. Hole Depth (imperial)	0.05"
Min. Hole Depth (metric)	1.2mm
Min. Panel Thickness (imperial)	0.05"
Min. Panel Thickness (metric)	1.2mm
Mounting Hole Diameter (imperial)	0.25 x 0.49 ", 0.25 x 0.51 ", 0.27 x 0.47 "
Mounting Hole Diameter (metric)	6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm
Panel Thickness (imperial)	0.05 - 0.07"
Panel Thickness (metric)	1.2 - 1.8mm
Width (imperial)	0.89"
Width (metric)	22.78mm

CE Certification	No
CSA Certified	No
Material	PA66HIRHS, TPE
Material	Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS), Thermoplastic Elastomer (TPE)
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Operating Temperature, 1000h	+320°F (+160°C)
Operating Temperature, 5000h	+257°F (+125°C)
Operating Temperature, 500h	+329°F (+165°C)
Prop65 Warning	No
REACH Conformity	No
ROHS compliant	No
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No


Customs Number (Schedule B)	3926909988
Harmonized Tariff Schedule Code	3926.90.9989
Pkg. Qty.	4000
Pkg. Qty.	4000Carton
