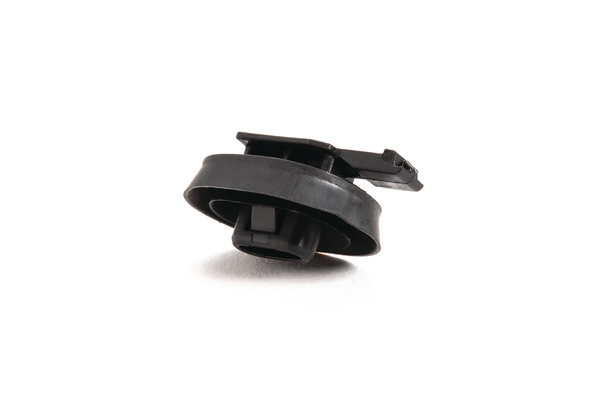

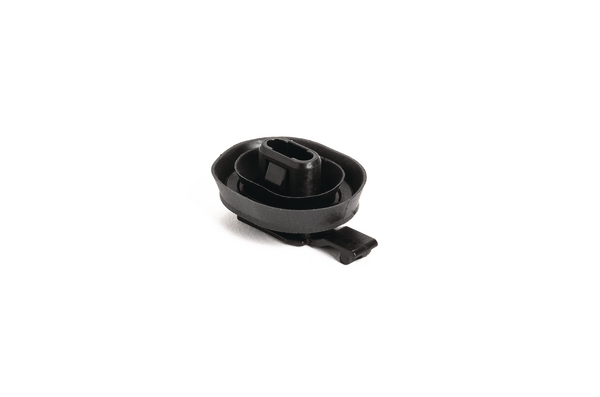

Connector clip, black, 4000pcs.

Art.-No. 151-02079

| SAHOVALCC-PA66HIRHSUV/TPE-BK

|

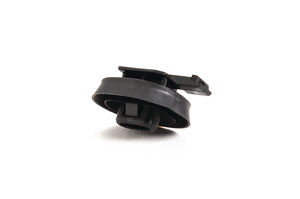

Integrated dual seal meets IP65 for protection against water, dust, chemicals, air and sound.

Easy to install by simply pushing into place
Connection can be released (non-destructive)
One fit tree foot part can be used for a variety of panel thicknesses
Disc covers the hole to prevent dust and dirt gaining access

Add to watchlist

Downloads

Base Data

Application	The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour	Black (BK)
Fixation Method	arrowhead
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
PART DESCRIPTION	SAHOVALCC-PA66HIRHSUV/TPE-BK
Package Content	4000pcs.
Package Content packed in	bag
Type	SAHOVALCC
Type of connection	USCAR11
UV-Stabilised	Yes
Variant	6.2 x 12.2 mm 6.5 x 12.5 mm 6.5 x 13.0 mm
Weight/Unit	0.01kg

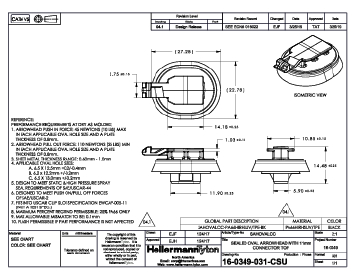

Product Dimensions

Height (H)	14.48mm
Length (L)	27.28mm
Panel Thickness	0.6 - 1.1mm
Width (W)	22.78mm
for Hole ⌀ (FH)	6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm
for Panel Thickness min - max	0.6 - 1.1 mm

Specifications

CE Certification	No
CSA Certified	No
ELV compliant (Article 4 - 2)	Yes
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
Customs Number	39269097
GTIN-13 / EAN	4031026742410
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.20479m
Packaging 3 - Length (m)	0.5159375m
Packaging 3 - Qty	4000
Packaging 3 - Type	carton
Packaging 3 - Volume (m³)	0.0332m³
Packaging 3 - Weight (kg)	40.0kg
Packaging 3 - Width (m)	0.314325m
Packaging 4 - Qty	160000

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
