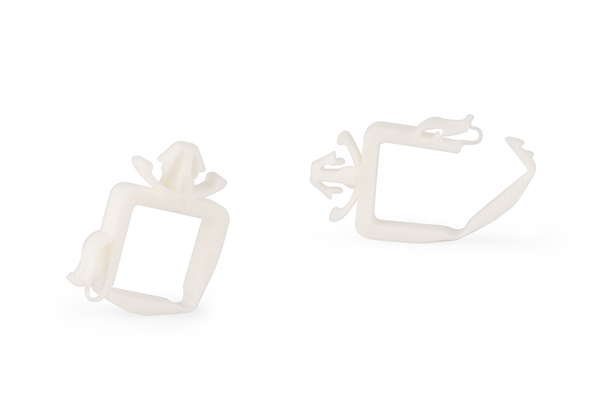

Corrugated tube clip for hole (round), nom⌀18.0mm, natural, 500pcs.

Art.-No. 151-03081

| SFT4.8-2218-PA66V0-NA

|

Accepts single or multiple wires
simply push wires into place
Arrowhead design for simple and secure installation
Access to panel from one side

Add to watchlist

Downloads

More products in this product group:

Wire Push in clip

Base Data

Application	With the increased complexity of electronic and electrical installations, the use of the SFT clip enable cables to be installed using the minimum amountof space .Typical appliaction can be seen in the frames/rail of control cabinets within the white goods industry and OA industry.
Colour	Natural (NA)
Fixation Method	with Arrowhead / Push Mount (Mounts)
Key product features	for faster processing, for narrow space, reusable
Material	Polyamide 6.6 V0 (PA66V0)
PART DESCRIPTION	SFT4.8-2218-PA66V0-NA
Package Content	500pcs.
Package Content packed in	bag
Product Family	SFT series
Product Group	Wire Push in clip
Type	SFT4.8-2218

Product Dimensions

Height (H)	45.0mm
Length (L)	24.6mm
Nominal ⌀	18.0mm
Panel Thickness	0.5-2.0mm
Width (W)	4.5mm
for Hole ⌀ (FH)	4.7 - 4.9 mm
for Panel Thickness min - max	0.5 - 2 mm

Specifications

Operating Temperature	-40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	CN
GTIN-13 / EAN	4031026631806

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	31162906
