Ratchet O-Clamp

Art.-No. 151-04591

| SGDROC12-16FT7LG-PA66HIRHSUV/TPE-BK

|

Soft TPE over-mold prevents axial slide/rotation and protects sensitive HV cables.
Compact size for mounting in tight spaces.
Fine-pitch ratchet provides controlled grip for a range of pipe sizes with one part.
Fully enclosed clamp prevents slip, crush and fallout under vacuum.
Release latch with simple twist of screwdriver.

Add to watchlist

Downloads

More products in this product group:

Ratchet O-Clamp

Base Data

Colour	Black (BK)
Description	The Ratchet O-Clamp is designed for tight spaces, maintaining a low-profile, adjustable grip around a routing while providing a robust mounting solution. Designed for fluid routing and high-voltage cable management, these clamps include a TPE liner to protect the routing and keep it in position. An integrated fir tree provides a secure grip into round mounting holes with no additional hardware.
Fixation Method	Fir Tree
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
Min.Tensile Strength	445N
PART DESCRIPTION	SGDROC12-16FT7LG-PA66HIRHSUV/TPE-BK
Package Content	500Carton
Package Content packed in	carton
Product Family	Dual Soft Grip with Fir Tree Mount
Product Group	Ratchet O-Clamp
Type	SGDROC12-16FT7LG
UV-Stabilised	Yes

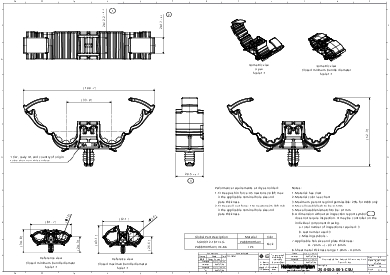

Product Dimensions

Bundle ⌀	12.0-16.0mm
Bundle ⌀ max.	16.0mm
Bundle ⌀ min.	12.0mm
Height (H)	52.3mm
Length (L)	100.7mm
Panel Thickness	1.0 - 4.0mm
Width (W)	20.5mm
for Hole ⌀ (FH)	6.7 - 7.3 mm
for Panel Thickness min - max	1 - 4 mm

Specifications

CE Certification	No
CSA Certified	No
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Reusable (Yes/No)	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026779577
Packaging 1 - Qty	500
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.209549999999999m
Packaging 3 - Length (m)	0.606425m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0504m³
Packaging 3 - Width (m)	0.39688m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162306
