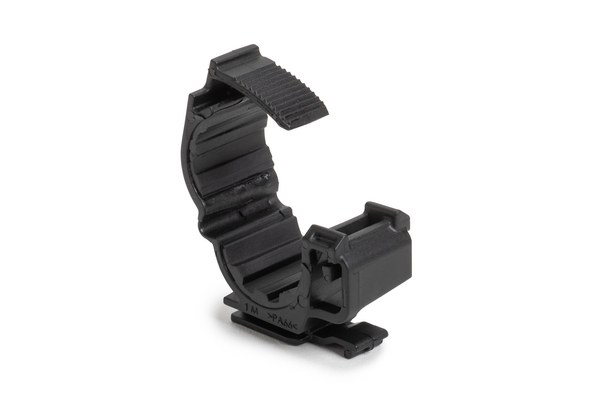

Ratchet O-Clamp

Art.-No. 151-04272

| SGROC12-16CLIP17-PA66HIRHSUV/TPE-BK

|

Soft TPE over-mold prevents axial slide/rotation and protects sensitive HV cables.
Compatible with all HellermannTyton standard USCAR17 connector clip mounts.
Compact size for mounting in tight spaces.
Fine-pitch ratchet provides controlled grip for a range of pipe sizes with one part.
Fully enclosed clamp prevents slip, crush and fallout under vacuum.
Release latch with simple twist of screwdriver.

Add to watchlist

Downloads

More products in this product group:

Ratchet O-Clamp

Base Data

Colour	Black (BK)
Description	The Ratchet O-Clamp is designed for tight spaces, maintaining a low-profile, adjustable grip around a routing while providing a robust mounting solution. Designed for fluid routing and high-voltage cable management, this clamp includes a TPE liner to protect the routing and keep it in position. HellermannTyton's connector clips provide a single method to mount connectors to various surfaces in a variety of applications. Clips can be paired with brackets for custom routing needs.
Fixation Method	Connector Clip
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
Min.Tensile Strength	445N
PART DESCRIPTION	SGROC12-16CLIP17-PA66HIRHSUV/TPE-BK
Package Content	1000pcs.
Package Content packed in	bag
Product Family	Soft Grip with Connector Clip
Product Group	Ratchet O-Clamp
Type	SGROC12-16CLIP17
Type of connection	USCAR17
UV-Stabilised	Yes

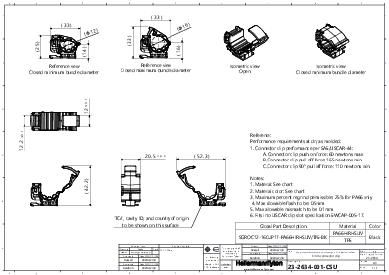

Product Dimensions

Bundle ⌀	12.0-16.0mm
Bundle ⌀ max.	16.0mm
Bundle ⌀ min.	12.0mm
Height (H)	42.2mm
Length (L)	52.3mm
Width (W)	20.5mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Reusable (Yes/No)	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026746517
Packaging 1 - Qty	1000
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.37465m
Packaging 3 - Length (m)	0.59055m
Packaging 3 - Type	carton
Packaging 3 - Volume (m³)	0.0646m³
Packaging 3 - Width (m)	0.2921m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162306
