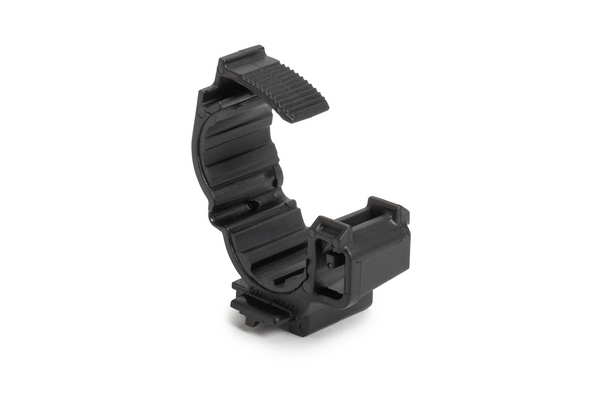

Ratchet O-Clamps
Art.-No. 151-04073 | SGROC15.5-20SLOT17-PA66HIRHSUV/TPE-BK

Soft TPE over-mold prevents axial slide/rotation and protects sensitive HV cables.
Modular connector clip design eliminates the need for investment in expensive tools for TPE products or upsetting of tubes and pipes.
Compact size for mounting in tight spaces.
Fine-pitch ratchet provides controlled grip for a range of pipe sizes with one part.
Fully enclosed clamp prevents slip, crush and fallout under vacuum.
Release latch with simple twist of screwdriver.

More products in this product group:

Color	Black (BK)
Description	The Ratchet O-Clamp is designed for tight spaces, maintaining a low-profile, adjustable grip around a routing while providing a robust mounting solution. Designed for fluid routing and high-voltage cable management, this clamp includes a TPE liner to protect the routing and keep it in position. HellermannTyton's connector clips provide a single method to mount connectors to various surfaces in a variety of applications. Slot can be paired with any HellermannTyton standard USCAR17 connector clip mount.
Min. Tensile Strength (imperial)	100lbs
Min. Tensile Strength (metric)	445N
PART DESCRIPTION	SGROC15.5-20SLOT17-PA66HIRHSUV/TPE-BK
Packaging Type	carton
Part No.	151-04073
Product family	Ratchet Clamps
Product family	Products for wires and hoses
Short Desc.	Soft-Grip Ratchet O-Clamp, 17mm Connector Clip Slot, 0.61 - 0.79" Bundle Dia, PA66HIRHSUV/TPE, Black, 1000/ctn
Type	SGROC15.5-20SLOT17
UV Resistant	Yes

Fixation Method	Connector Clip
Height (imperial)	1.93"
Height (metric)	49.00mm
Length (imperial)	2.29"
Length (metric)	58.1mm
Max. Bundle Diameter (imperial)	0.79"
Max. Bundle Diameter (metric)	20.0mm
Min. Bundle Diameter (imperial)	0.61"
Min. Bundle Diameter (metric)	15.5mm
Width (imperial)	1.00"
Width (metric)	25.5mm

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen Free	Yes
Material	PA66HIRHSUV, TPE
Material	Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
Reusable (Yes/No)	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Customs Number (Schedule B)	3926909988
Harmonized Tariff Schedule Code	3926.90.9989
Pkg. Qty.	1000
Pkg. Qty.	1000Pieces
