SLRCN12SM38-PA66HIRHSUV-BK

Art.-No. 151-03828

| SLRCN12SM38-PA66HIRHSUV-BK

|

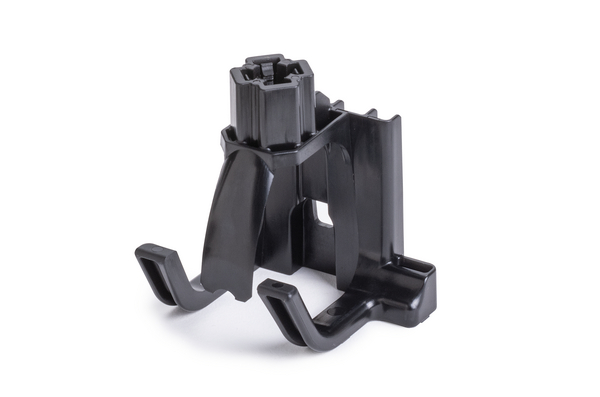

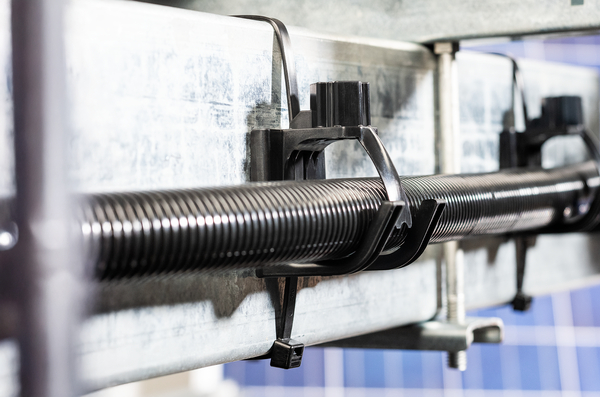

Large, 1.5" opening supports multiple cables or tubing.

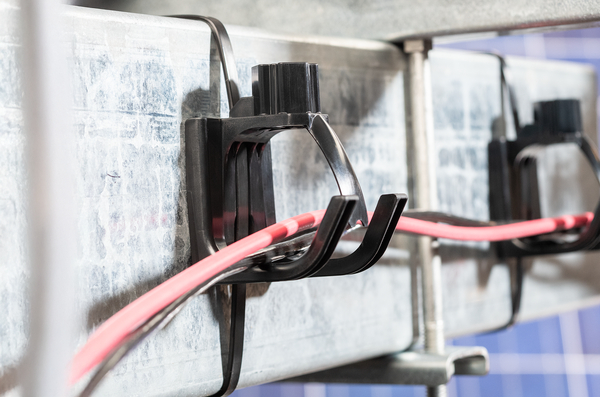

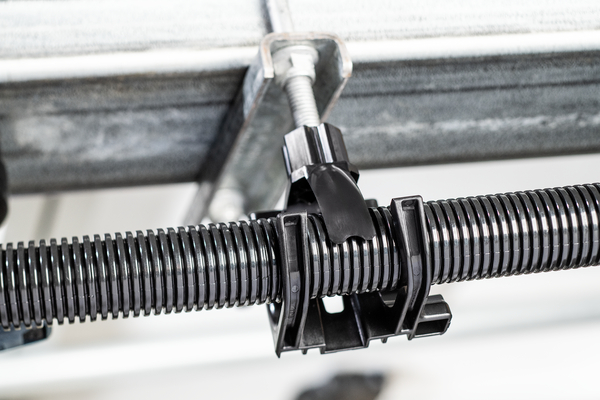

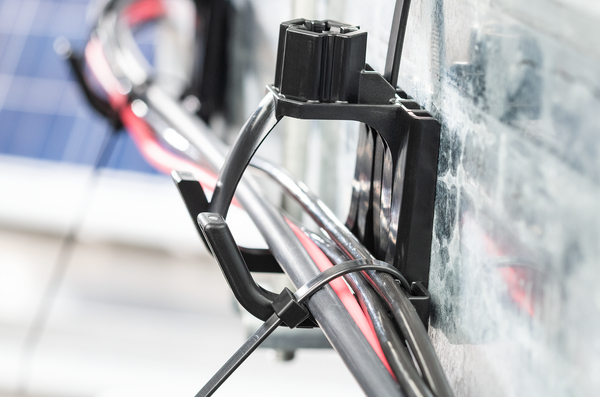

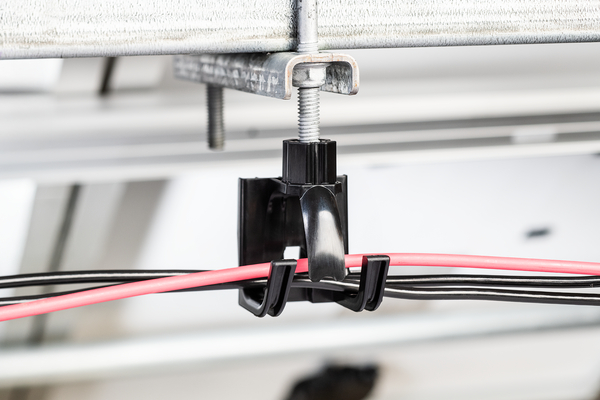

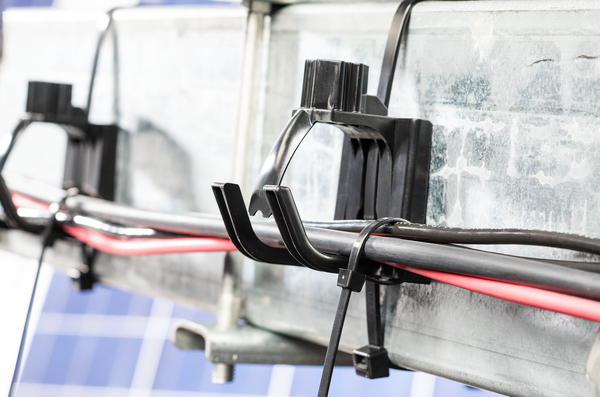

Three mounting options – M10 stud mount, T120X or T120XLM cable tie tube mount and M5 hex head screw mount – adapt to a variety of installation scenarios.
Unique, flexible retainer allows routings to be easily inserted, but demonstrates rigidity in opposite direction to provide 360-degree containment.

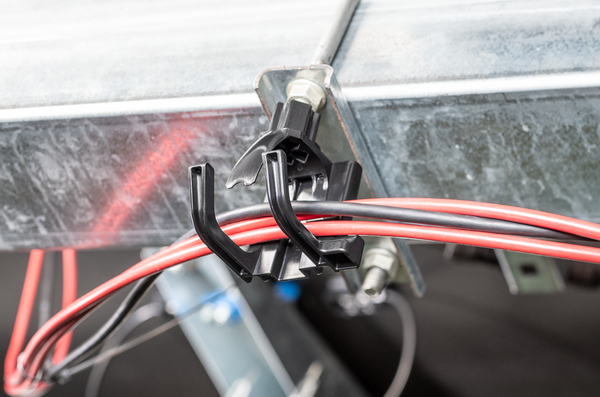

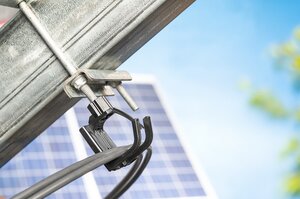

For applications where mount will be rotated 180 degrees, the integrated support saddle accommodates a cable tie to provide additional routing security.

Add to watchlist

Downloads

Base Data

Colour	Black (BK)
Compatible with	Gamechange Solar
Conduit ⌀	CTPUV1140
Fixation Method	Screw Mount
For Ties	T120X, T120XLM (cable tie anchor) T120S, T50R (cable tie saddle)
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	SLRCN12SM38-PA66HIRHSUV-BK
Package Content	200Carton
Package Content packed in	carton
Type	SLRCN12SM38
UV-Stabilised	Yes
Weight/Unit	0.025kg

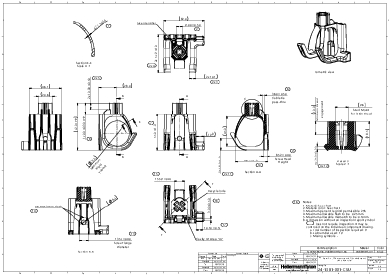

Product Dimensions

Bundle ⌀	38.1mm
Bundle ⌀ max.	38.1mm

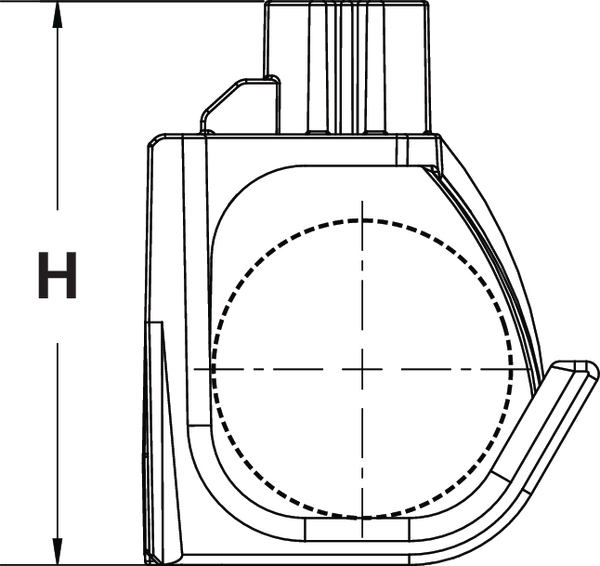

Height (H)	72.0mm
Height (H2)	45.0mm

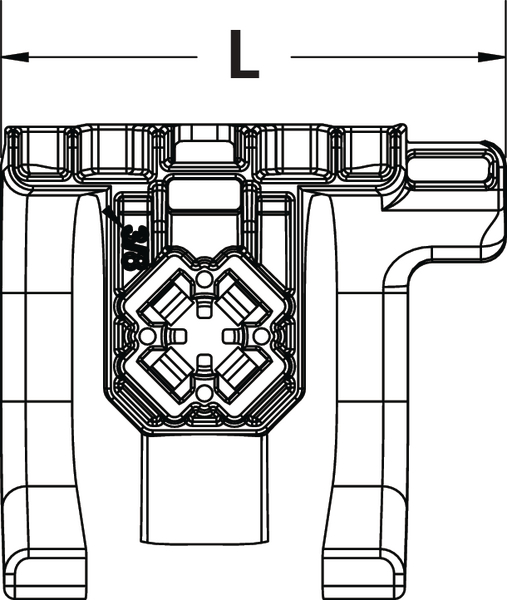

Length (L)	62.0mm
Min Stud Length	0.39"
Min Stud Length	10.0mm
Strap Width max. (G)	0.29"
Strap Width max. (G)	7.6mm
Stud ⌀	M5
Stud ⌀	#12 (0.22")
Stud ⌀	3/8 " x16"
Stud ⌀	M10

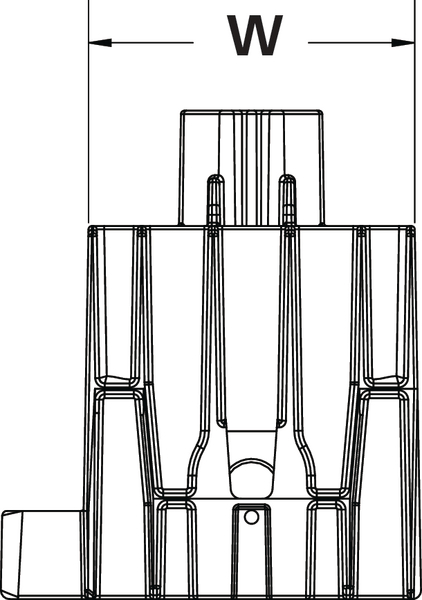

Width (W)	48.1mm
for Hole ⌀ (FH)	M10 Threaded

Specifications

CE Certification	No
CSA Certified	No
ELV compliant (Article 4 - 2)	Yes
Flammability	UL 94 HB
Halogen-free	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
Operating Temperature, 1000h	+160 °C
Operating Temperature, 5000h	+125 °C
Operating Temperature, 500h	+165 °C
ROHS compliant	Yes
Reusable (Yes/No)	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
Customs Number	39269097
GTIN-13 / EAN	4031026764092
Packaging 1 - Qty	200
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	5.0kg
Packaging 3 - Height (m)	0.219075m
Packaging 3 - Length (m)	0.6064m
Packaging 3 - Qty	200
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0529m³
Packaging 3 - Weight (kg)	5.0kg
Packaging 3 - Width (m)	0.3984625m
Packaging 4 - Qty	6000

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
