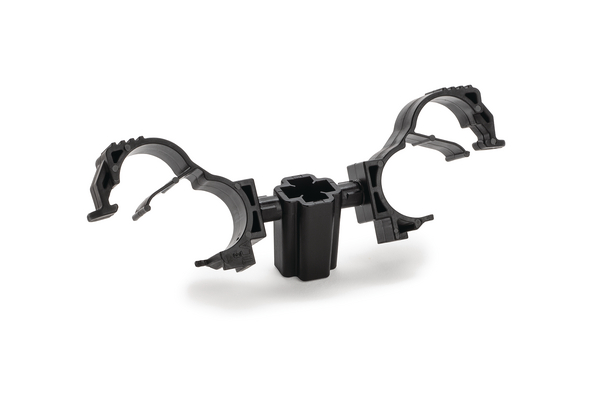

Cable clip for stud, ⌀5.0 mm/6.0 mm, Dmin=10.0mm, Dmax=15.0mm, nom⌀=12.0 mm, nom⌀2=12.0 mm, ⌀5.0 mm/6.0 mm
Art.-No. 156-02843
| SMF2LOC10-14X2-PA66HIRHSUV-BK
Copied
- Multi-option dual-clamp stud mount secures two bundles running alongside a bolt or stud.
- The 360-degree locking enclosure and cable tie dynamically fit a range of bundle sizes.
- Clamp can be opened for bundle maintenance.
- Independent rotation allows for adjustable routing orientation.
- High-performance stud mount design allows for easy installation and delivers outstanding stud retention to keep bundles secure.
More products in this product group:
| Application | Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.). |
| Colour | Black (BK) |
| Fixation Method | Stud Mount |
| Key product features | for multiple routing |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | SMF2LOC10-14X2-PA66HIRHSUV-BK |
| Package Content | 1000pcs. |
| Package Content packed in | pack |
| Product Family | multiparallel routing, weld studs |
| Product Group | Fixing elements for tubes and harnesses |
| Releasable Closure (Yes/No) | No |
| Type | SMF2LOC10-14X2 |
| UV-Stabilised | Yes |
| Weight/Unit | 0.007kg |
| Attach to ⌀ | 12.0 |
| Bundle ⌀ | 10.0-15.0mm |
| Bundle ⌀ 2 max. | 15.0mm |
| Bundle ⌀ 2 min. | 10.0mm |
| Bundle ⌀ max. | 15.0mm |
| Bundle ⌀ min. | 10.0mm |
| Bundle Diameter Nom. (ND) | 12.0 mm |
| Bundle Diameter Nom. 2 (ND2) | 12.0 mm |
| Depth (D) | 15.5mm |
| Height (H) | 34.9mm |
| Height (H2) | 17.8mm |
| Length (L) | 107.3mm |
| Length (L2) | 51.7mm |
| Nominal ⌀ | 0.47" |
| Nominal ⌀ | 12.0mm |
| Stud ⌀ | 5.0 mm, 6.0 mm |
| for Hole ⌀ (FH) | 5.0 mm, 6.0 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026635392 |
| Packaging 1 - Type | bag |
| Packaging 3 - Height (m) | 0.37465m |
| Packaging 3 - Length (m) | 0.59055m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0646m³ |
| Packaging 3 - Weight (kg) | 7.735kg |
| Packaging 3 - Width (m) | 0.2921m |
| Packaging 4 - Height (m) | 1.269m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 12000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.218m³ |
| Packaging 4 - Weight (kg) | 114.82kg |
| Packaging 4 - Width (m) | 0.8m |
