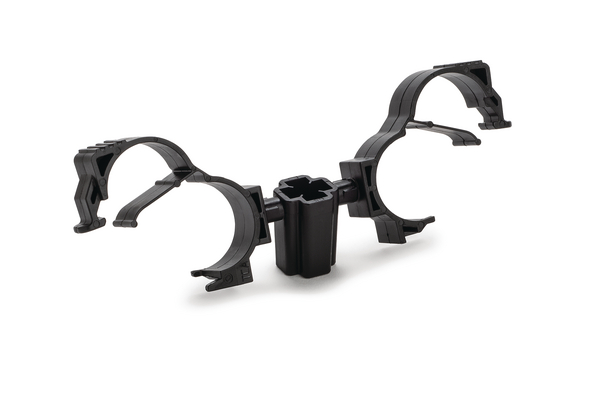

Cable clip for stud, ⌀5.0 mm/6.0 mm, Dmin=15.0mm, Dmax=20.0mm, nom⌀=17.0 mm, nom⌀2=17.0 mm, ⌀5.0 mm/6.0 mm
Art.-No. 156-02844 | SMF2LOC15-19X2-PA66HIRHSUV-BK

Copied
  • Attach before installing pipe or hose
  • Parts labelled 'I' are interlockable for more installation options
  • Option to mount onto 5mm 'T' stud or IAHC type of Automatic Harness Clips

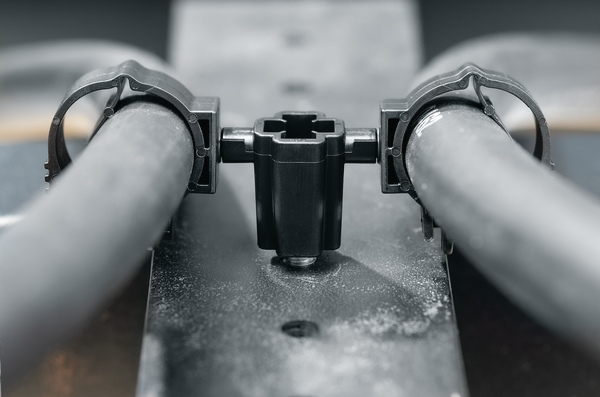

Application Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.).
Colour Black (BK)
Fixation Method Stud Mount
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION SMF2LOC15-19X2-PA66HIRHSUV-BK
Package Content 1000pcs.
Package Content packed in bag
Releasable Closure (Yes/No) No
Type SMF2LOC15-19X2
UV-Stabilised Yes
Bundle ⌀ 15.0-20.0mm
Bundle ⌀ 2 max. 20.0mm
Bundle ⌀ 2 min. 15.0mm
Bundle ⌀ max. 20.0mm
Bundle ⌀ min. 15.0mm
Bundle Diameter Nom. (ND) 17.0 mm
Bundle Diameter Nom. 2 (ND2) 17.0 mm
Depth (D) 15.5mm
Height (H) 42.4mm
Height (H2) 17.8mm
Length (L) 122.3mm
Length (L2) 56.7mm
Nominal ⌀ 0.67"
Nominal ⌀ 17.0mm
Stud ⌀ 5.0 mm, 6.0 mm
for Hole ⌀ (FH) 5.0 mm, 6.0 mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
Country of Origin MX
GTIN-13 / EAN 4031026635408
Packaging 1 - Type bag
Packaging 3 - Height (m) 0.42069m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Qty 1000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.1021
Packaging 3 - Weight (kg) 8.8kg
Packaging 3 - Width (m) 0.40005m
Packaging 4 - Qty 18000
Packaging 4 - Type pallet
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
