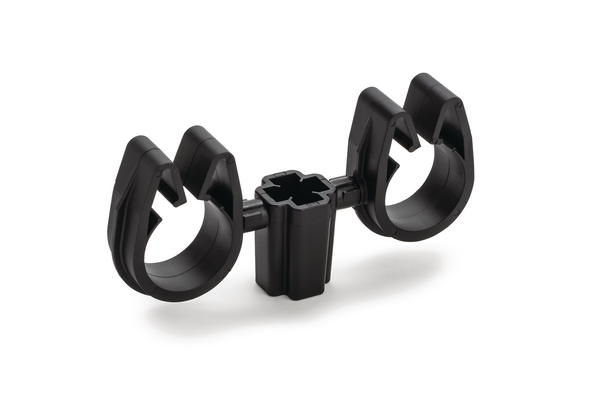

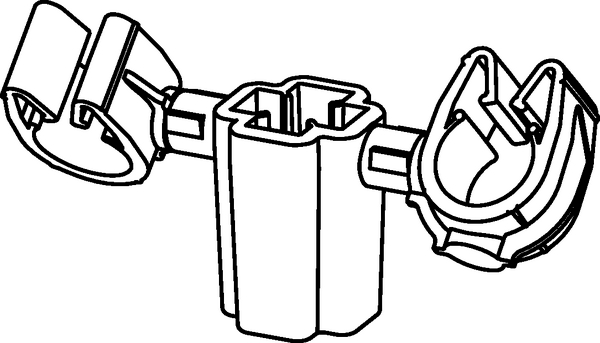

Cable clip for stud, Dmin=17.0mm, Dmax=21.8mm, nom⌀=19.0 mm, nom⌀2=19.0 mm, ⌀5.0 mm/6.0 mm

Art.-No. 156-04210

| SMF2MOC19MX2-PA66HIRHSUV-BK

|

Attach before installing pipe or hose
Parts labelled 'I' are interlockable for more installation options
Option to mount onto 5mm 'T' stud or IAHC type of Automatic Harness Clips

Add to watchlist

Downloads

Base Data

Application	Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.).
Colour	Black (BK)
Fixation Method	Stud Mount
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	SMF2MOC19MX2-PA66HIRHSUV-BK
Package Content	1000pcs.
Package Content packed in	bag
Releasable Closure (Yes/No)	No
Type	SMF2MOC19MX2
UV-Stabilised	Yes

Product Dimensions

Bundle ⌀	17.0-21.8mm
Bundle ⌀ 2 max.	21.8mm
Bundle ⌀ 2 min.	17.0mm
Bundle ⌀ max.	21.8mm
Bundle ⌀ min.	17.0mm
Bundle Diameter Nom. (ND)	19.0 mm
Bundle Diameter Nom. 2 (ND2)	19.0 mm

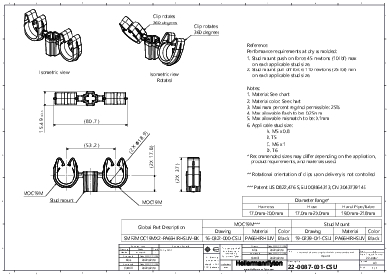

Depth (D)	15.5mm
Height (H)	37mm
Height (H2)	17.8mm
Length (L)	80.7mm
Length (L2)	53.2mm
Stud ⌀	0.20 ";0.24"
Stud ⌀	5.0 mm, 6.0 mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +110 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026690636
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.219075m
Packaging 3 - Length (m)	0.6064m
Packaging 3 - Qty	1000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0529m³
Packaging 3 - Weight (kg)	8.9kg
Packaging 3 - Width (m)	0.3984625m
Packaging 4 - Qty	30000
Packaging 4 - Type	pallet

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
