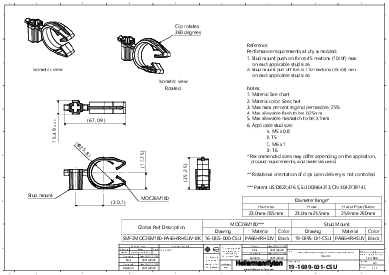

Cable clip for stud, Dmin=23.0mm, Dmax=29.0mm, ⌀5.0 mm/6.0 mm
Art.-No. 156-02929
| SMF2MOC26M180-PA66HIRHSUV-BK
Copied
- Multi option stud mount clip secures bundles running alongside a bolt or stud.
- Patented retention design features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.

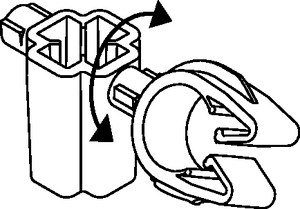

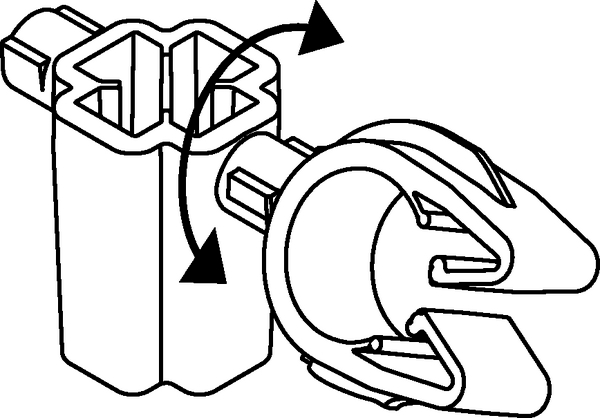

- Independent rotation allows for adjustable routing orientation.
- High-performance stud mount design allows for easy installation and delivers outstanding stud retention to keep bundles secure.
| Application | Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.). |
| Color | Black (BK) |
| Description | The MOC with stud mount features HellermannTyton's unique retention clip with a best-in-class stud mount to secure to a 5mm or 6mm stud or bolt. The mount delivers a low insertion force while exhibiting high extraction resistance for a secure mounting point. |
| PART DESCRIPTION | SMF2MOC26M180-PA66HIRHSUV-BK |
| Packaging Type | bag |
| Part No. | 156-02929 |
| Product family | Products for wires and hoses, Products to use on studs |
| Short Desc. | Stud Mount to MOC Clip, 26mm Clip Rotated, 5mm/6mm Stud Mount, PA66HIRHSUV, Black, 1000/ctn |
| Type | SMF2MOC26M180 |
| UV Resistant | Yes |
| Depth (imperial) | 0.61" |
| Depth (metric) | 15.5mm |
| Fixation Method | Stud Mount |
| Height (metric) | 35.3mm |
| Height 2 (metric) | 17.8mm |
| Length (metric) | 67.1mm |
| Length 2 (metric) | 30.1mm |
| Max. Bundle Diameter (imperial) | 1.14" |
| Max. Bundle Diameter (metric) | 29.0mm |
| Min. Bundle Diameter (imperial) | 0.91" |
| Min. Bundle Diameter (metric) | 23.0mm |
| Nominal Diameter (metric) | 26.0mm |
| Stud Diameter (metric) | 5.0 mm, 6.0 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Prop65 Warning | No |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
