Module Hangers
Art.-No. 151-03631 | SMH1-AL-ML

Copied

    • One handed installation – no tools or special handling required.
    • Aluminum alloy material resists corrosion.
    • Compatible with nearly all module types and frames.
    Add to watchlist
    Downloads
    Color Aluminium (AL)

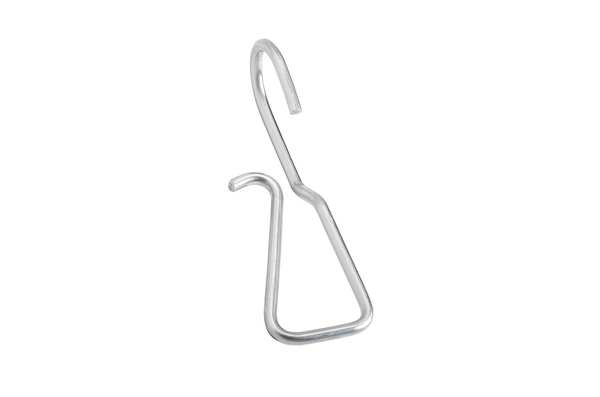

    Description Module cable hangers route individual cable runs in solar panel installations. They demonstrate a high degree of mechanical strength and are angled to slip into existing module holes for easy installation.
    PART DESCRIPTION SMH1-AL-ML
    Packaging Type box
    Part No. 151-03631
    Short Desc. Solar Module Cable Hanger, 3mm Wire, 25 lb. Load Rating, Aluminum Alloy, 3000/carton
    Type SMH1
    UV Resistant No
    Fixation Method Mounting Hanger

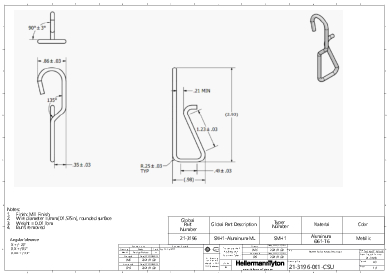

    Height (imperial) 2.93"
    Height (metric) 74.4mm
    Height 2 (imperial) 1.23"
    Height 2 (metric) 31.24mm
    Length (imperial) 0.98"
    Length (metric) 24.9mm
    Max. Bundle Diameter (imperial) 0"
    Min. Bundle Diameter (imperial) 0"
    Mounting Hole Diameter (imperial) 0.13 "
    Mounting Hole Diameter (metric) 3.1 mm
    Slot Size (W2) 5.3mm
    Width (imperial) 0.86"
    Width (metric) 21.8mm
    CE Certification No
    CSA Certified No
    Halogen Free Yes
    Material AL
    Material Aluminum Alloy (AL)
    Operating Temperature -40°F to +284°F (-40°C to +140°C)
    ROHS compliant Yes
    Customs Number (Schedule B) 7605290000
    Harmonized Tariff Schedule Code 7605.29.0000
    Pkg. Qty. 3000Pieces
    Pkg. Qty. 3000
