Plastic hose clamp, ⌀66.9-79.9mm, black, 100pcs.
Art.-No. 190-00209 | SNP70-PA66GF13-BK

Copied
Designed for quick, ratcheted installation and can be released and reused.
SNP - Snapper Hose Clips range.

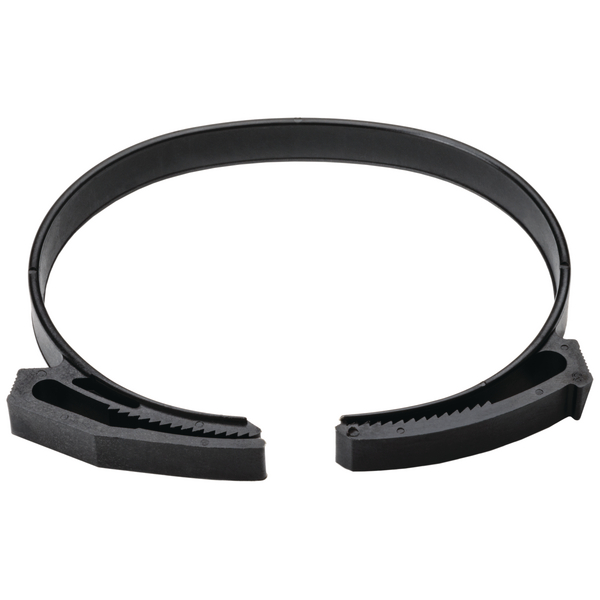

SNP - Snapper Hose Clip (front view)
Designed for quick, ratcheted installation and can be released and reused.

    • Installation and removal can be five times faster than conventional clamps.
    • Completely reusable.
    • Will not rust or corrode.
    • Safety engineered.
    • No protruding band or cluster.
    • Can be installed with hose in place.
    • One-hand installation for tight places.
    Add to watchlist
    Downloads
    Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
    Brand Family Snapper
    Color Black (BK)
    Description The Snapper Hose Clamp features a ratchet-style closure for reduced assembly time. It can be added after connection of the hose. Release by sliding the ratchet ends apart. Snappers can be used in under-hood applications and are stable in a wide variety of chemicals including salts, bases, alcohols, ethers, detergents, gasoline, lubricating oils and greases. They are manufactured in black PA66 glass filled, impact modified, heat stabilized material. Custom design and color options are available based upon application and volume requirements.
    PART DESCRIPTION SNP70-PA66GF13-BK
    Packaging Type pack
    Part No. SNP70GHS0C2
    Product family Products for wires and hoses
    Short Desc. Snapper Hose Clamp, 2.63"–3.15" Bundle Diameter, PA66GF13, Black, 100/pkg
    Type SNP70
    UV Resistant No
    Fixation Method Plug-in mounting
    Max. Bundle Diameter (imperial) 3.15"
    Max. Bundle Diameter (metric) 79.9mm
    Max. Diameter (imperial) 3.146"
    Max. Diameter (metric) 79.91mm
    Max. Width (imperial) 3.059"
    Max. Width (metric) 77.7mm
    Min. Bundle Diameter (imperial) 2.63"
    Min. Bundle Diameter (metric) 66.9mm
    Min. Diameter (imperial) 2.634"
    Min. Diameter (metric) 66.9mm
    Min. Width (imperial) 1.831"
    Wall Thickness (imperial) .078"
    Wall Thickness (metric) 2.02mm
    Width 2 (imperial) 0.295"
    Width 2 (metric) 7.49mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Material PA66GF13
    Material Polyamide 6.6 glass filled impact modified heat stabilized (PA66GF13%)
    Operating Temperature -40°F to +257°F (-40°C to +125°C)
    Prop65 Warning No
    REACH Conformity No
    ROHS compliant Yes
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Customs Number (Schedule B) 3926909988
    Harmonized Tariff Schedule Code 3926.90.9989
    Pkg. Qty. 100
    Pkg. Qty. 100Pieces
