30/06/2025

Bundling clip for hole (round), grey, 1000pcs.
Art.-No. 151-01220 | SOC10D6-PA66-GY

Copied
Application Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
Colour Grey (GY)
Material Polyamide 6.6 (PA66)
PART DESCRIPTION SOC10D6-PA66-GY
Pack Cont. 1000pcs.
Package Content packed in bag
Type SOC10D6
Disc ⌀ 16mm
Height (H2) 7.7mm
Weight/Unit 0.001115kg
for Panel Thickness min - max 0.7 - 1.8 mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin KR
Customs Number 39269097
GTIN-13 / EAN 4031026472515
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.48m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.009792
Packaging 1 - Weight (kg) 1.115001kg
Packaging 1 - Width (m) 0.34m

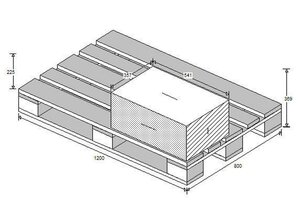

Packaging 3 - Height (m) 0.225m
Packaging 3 - Length (m) 0.541m
Packaging 3 - Qty 6000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0435
Packaging 3 - Weight (kg) 7.500006kg
Packaging 3 - Width (m) 0.357m

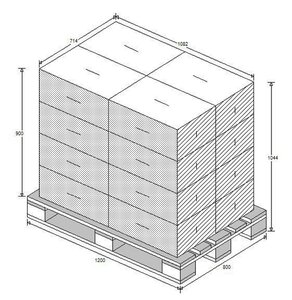

Packaging 4 - Height (m) 1.044m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.002
Packaging 4 - Weight (kg) 141.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
