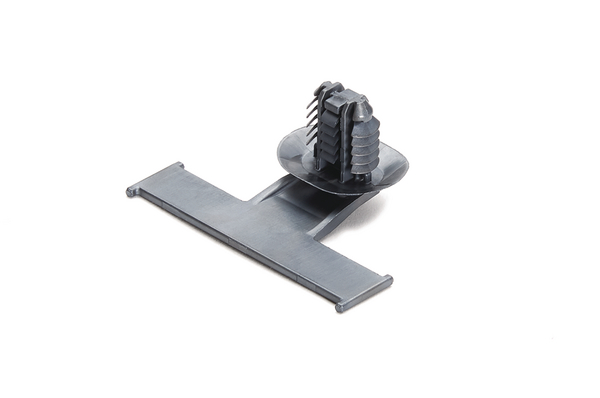

Bundling clip for hole (oval), L=50.0mm, SO=20.0mm, silver, 3000pcs.
Art.-No. 151-01805
| SOC11FTOVAL-PPS-SR
Copied
- Clip can be installed by hand – no need for hardware or tools.
- Design provides low insertion and high extraction force, for simple, secure performance.
- Clip keeps bundle away from areas that could cause damage due to rubbing.
More products in this product group:
| Application | These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes. |
| Color | Silver (SR) |
| Description | Standoff bundling clips provide a straightforward way to secure cable bundles, hoses or pipes. The bundle fastens to the tape bar using tape or cable ties. Multiple orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standoff keeps bundles away from mounting area to prevent them from damage due to rubbing. |
| PART DESCRIPTION | SOC11FTOVAL-PPS-SR |
| Packaging Type | bag |
| Part No. | 151-01805 |
| Product family | Bundling Clips |
| Short Desc. | Standoff Bundling Clip, 50.0 mm Long, Mounting Hole Dia. 6.2–13.0mm, PPS, Silver 3000/carton |
| Type | SOC11FTOVAL |
| UV Resistant | No |
| Fixation Method | Fir Tree for oval holes |
| Height (imperial) | 0.79" |
| Height (metric) | 19.9mm |
| Height 2 (imperial) | 0.51" |
| Height 2 (metric) | 12.83mm |
| Length (imperial) | 1.97" |
| Length (metric) | 50.0mm |
| Length 2 (metric) | 20.0mm |
| Max. Bundle Diameter (imperial) | 0" |
| Max. Hole Depth (imperial) | 0.27" |
| Max. Hole Depth (metric) | 6.75mm |
| Max. Mounting Hole Diameter (imperial) | 0.50" |
| Max. Panel Thickness (imperial) | 0.27" |
| Max. Panel Thickness (metric) | 6.75mm |
| Min. Bundle Diameter (imperial) | 0" |
| Min. Hole Depth (imperial) | 0.02" |
| Min. Hole Depth (metric) | 0.6mm |
| Min. Mounting Hole Diameter (imperial) | 0.24" |
| Min. Panel Thickness (imperial) | 0.02" |
| Min. Panel Thickness (metric) | 0.6mm |
| Mounting Hole Diameter (imperial) | 0.24 x 0.48 ", 0.25 x 0.50 ", 0.27 x 0.47 " |
| Mounting Hole Diameter (metric) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| Mounting Hole Shape | Oval |
| Offset Length (imperial) | 0.79" |
| Offset Length (metric) | 20.0mm |
| Panel Thickness (imperial) | 0.02 - 0.27" |
| Panel Thickness (metric) | 0.6 - 6.75mm |
| Tape Bar Length (metric) | 50.0mm |
