Bundling clip for hole (round), L=50.0mm, SO=32.0mm, black, 1500pcs.
Art.-No. 151-01117 | SOC12FTOVAL-PA66HIRHSUV-BK |

Copied
Standoff bundling clips provide a straightforward way to secure cable bundles, hoses or pipes.

    • Clip can be installed by hand – no need for hardware or tools.
    • Design provides low insertion and high extraction force, for simple, secure performance.
    • Clip keeps bundle away from areas that could cause damage due to rubbing
    Add to watchlist
    Downloads
    Application Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION SOC12FTOVAL-PA66HIRHSUV-BK
    Package Content 1500pcs.
    Package Content packed in pack
    Type SOC12FTOVAL
    UV-Stabilised Yes
    Weight/Unit 0.002692kg
    Bundling Bar Length 50.0mm
    Height (H) 20.0mm
    Height (H2) 12.90mm

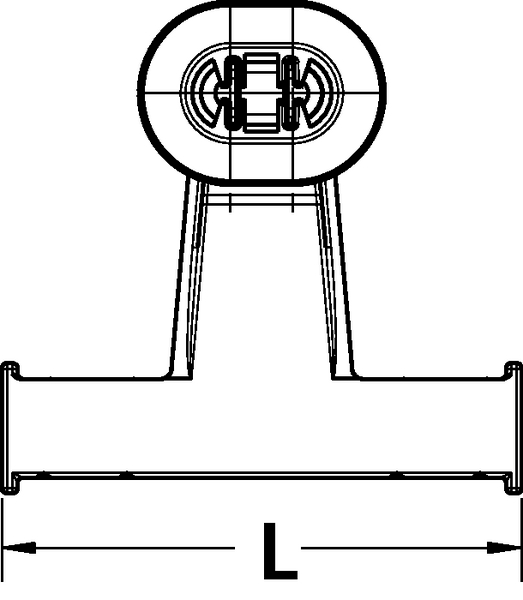

    Length (L) 50.0mm
    Length (L2) 32.0mm
    Offset Length 32.0mm
    Panel Thickness max. 0.6 - 6.75mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026456591
    Packaging 1 - Height (m) 0.203m
    Packaging 1 - Length (m) 0.508m
    Packaging 1 - Qty 1500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03403092m³
    Packaging 1 - Weight (kg) 4.038001kg
    Packaging 1 - Width (m) 0.33m
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Qty 1500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 4.658001kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.209m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.161m³
    Packaging 4 - Weight (kg) 114.16kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
