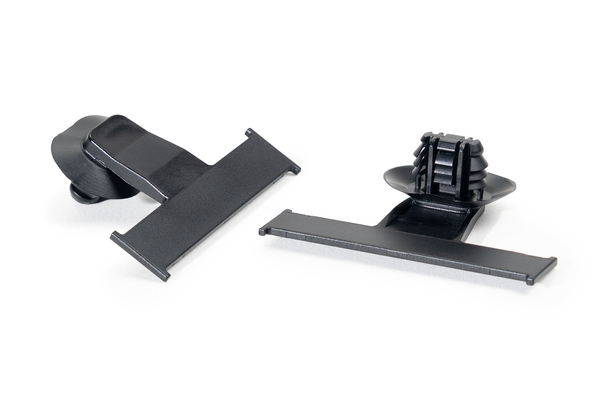

Bundling clip for hole (oval), L=50.0mm, SO=20.0mm, black, 1000pcs.
Art.-No. 151-02262 | SOC13FTOVAL-PA66HIRHS-BK |

Copied

    • Effortless, tool-free installation – can be mounted easily by hand without the need for tools
    • Flexible attachment options – compatible with both cable ties and adhesive tape
    • Oval base geometry – ensures defined cable routing and provides reliable anti-twist protection for secure positioning
    Add to watchlist
    Downloads
    Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION SOC13FTOVAL-PA66HIRHS-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Product Family Oval holes
    Product Group Bundling Clips with Fir Tree for Distance Routing
    Type SOC13FTOVAL
    Bundling Bar Length 50.0mm
    Fixing Hole Shape Oval
    Length (L) 50.0mm
    Length (L2) 20.0mm
    Offset Length 20.0mm
    Panel Thickness max. 0.6 - 4.0mm
    Weight/Unit 0.002073kg
    for Hole ⌀ (FH) 6.5 x 12.5 mm
    for Panel Thickness min - max 0.6 - 4 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026491226
    Packaging 1 - Height (m) 0.095m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01688625m³
    Packaging 1 - Weight (kg) 2.102135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.43281kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 182.184kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
