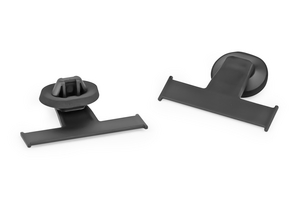

Bundling clip for hole (oval), L=50.0mm, SO=21.4mm, black, 500pcs.
Art.-No. 151-01331 | SOC32SFT65X130-MD-PA66HIRHS-BK

Copied
Application Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION SOC32SFT65X130-MD-PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in bag
Product Family Oval holes, sealed
Product Group Bundling Clips with Arrowhead for Distance Routing
Type SOC32SFT65X130-MD
Bundling Bar Length 50.0mm
Fixing Hole Shape Oval
Length (L) 50.0mm
Length (L2) 32.0mm
Offset Length 21.4mm
for Hole ⌀ (FH) 6.5 x 13.0 mm
for Panel Thickness min - max 0.6 - 2 mm
Country of Origin CN
GTIN-13 / EAN 4031026514550
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
