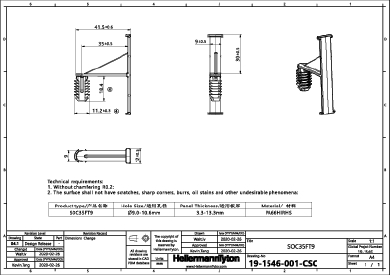

Bundling clip for hole (round), L=60.0mm, SO=35.0mm, black, 2000pcs.
Art.-No. 151-03175 | SOC35FT9-PA66HIRHS-BK

Application	Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
Color	Black (BK)
PART DESCRIPTION	SOC35FT9-PA66HIRHS-BK
Packaging Type	carton
Part No.	151-03175
Product family	Bundling Clips
Product family	Bundling Clips
Type	SOC35FT9

Max. Panel Thickness (metric)	13.3mm
Min. Panel Thickness (metric)	3.3mm
Mounting Hole Diameter (metric)	9.0 - 10.6 mm
Mounting Hole Shape	Circular
Offset Length (metric)	35.0mm
Panel Thickness (metric)	3.3 - 13.3mm
Tape Bar Length (metric)	60.0mm

Material	PA66HIRHS
Material	Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)

Pkg. Qty.	2000Pieces
Pkg. Qty.	2000
