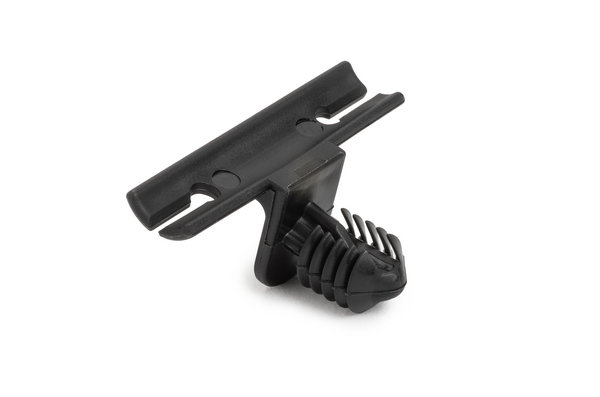

Bundling clip, L=36.2mm, black, 3500Bag
Art.-No. 133-03219 | SOC36FT6-PP-BK |

Copied

    Add to watchlist
    Downloads
    Application Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Material Polypropylene (PP)
    PART DESCRIPTION SOC36FT6-PP-BK
    Pack Cont. 3500Bag
    Package Content packed in bag
    Type SOC36FT6
    Bundling Bar Length 1.43"
    Bundling Bar Length 36.2mm
    Height (H) 23.9mm
    Height (H2) 13.3mm
    Length (L) 36.2mm
    Length (L2) 8.8mm
    Panel Thickness max. 2.5mm
    Stud ⌀ 0.20"
    Stud ⌀ 5.0 mm
    Width (W) 15.2mm
    for Hole ⌀ (FH) 7.25 - 7.75 mm
    for Panel Thickness min - max 2.5 - 13 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +115 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026589541
    Packaging 3 - Height (m) 0.1730375m
    Packaging 3 - Length (m) 0.57785m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0349m³
    Packaging 3 - Width (m) 0.34925m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
