Bundling clip for hole (round), L=55.0mm, SO=13.0mm, black, 1000
Art.-No. 151-03136 | SOC5FT6LG-MOD-PA66HIRHS-BK

Copied
Application Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION SOC5FT6LG-MOD-PA66HIRHS-BK
Pack Cont. 1000
Package Content packed in bag
Type SOC5FT6LG-MOD

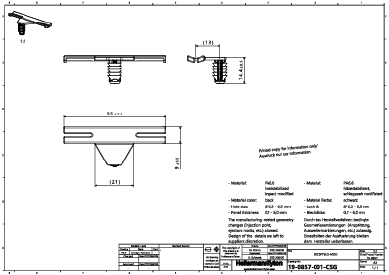

Bundling Bar Length 55.0mm
Fixing Hole Shape Circular
Height (H) 14.4mm
Length (L) 55.0mm
Length (L2) 21.0mm
Offset Length 13.0mm
Panel Thickness max. 0.7 - 6.0mm
Weight/Unit 0.001328kg
Width (W) 9.0mm
for Hole ⌀ (FH) 6.3 - 6.9 mm
for Panel Thickness min - max 0.7 - 6 mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026634951
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 1.349815kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 9000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 12.968335kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 108000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 176.64kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
