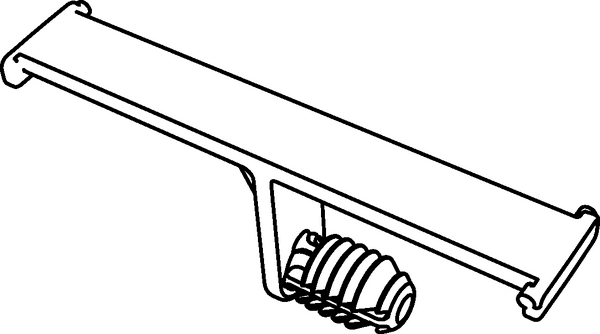

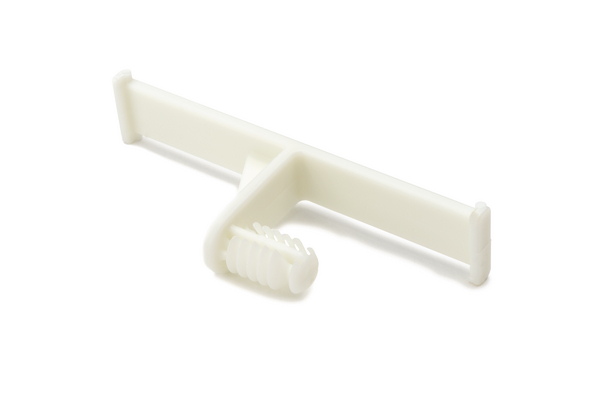

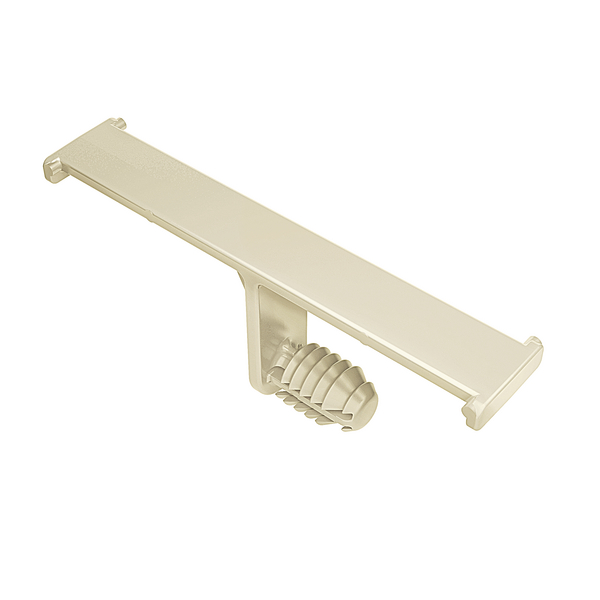

Bundling clip for hole (round), L=61.0mm, SO=15.9mm, natural, 2000pcs.
Art.-No. 151-00650
| SOC8FT6-PA66HIRHS-NA
|
Copied
- Clip can be installed by hand – no need for hardware or tools.
- Design provides low insertion and high extraction force, for simple, secure performance.
- Clip keeps bundle away from areas that could cause damage due to rubbing.
More products in this product group:
| Application | Standoff bundling clips provide a straightforward way to secure cable bundles, hoses or pipes. The bundle fastens to the tape bar using tape or cable ties. Multiple orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standoff keeps bundles away from mounting area to prevent them from damage due to rubbing. |
| Colour | Natural (NA) |
| Fixation Method | Fir Tree |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | SOC8FT6-PA66HIRHS-NA |
| Package Content | 2000pcs. |
| Package Content packed in | pack |
| Product Family | SOC8FT6 |
| Product Group | Bundling Clips with Fir Tree, for Distance Routing |
| Short Description | Bundling clip for hole (round), L=61.0mm, SO=15.9mm, natural, 2000pcs. |
| Type | SOC8FT6 |
| UV-Stabilised | No |
| Weight/Unit | 0.0015kg |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026335520 |
| Packaging 1 - Type | bag |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.5175m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0344m³ |
| Packaging 3 - Weight (kg) | 4.42kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.209m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 40000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.161m³ |
| Packaging 4 - Weight (kg) | 109.4kg |
| Packaging 4 - Width (m) | 0.8m |
