13/05/2024

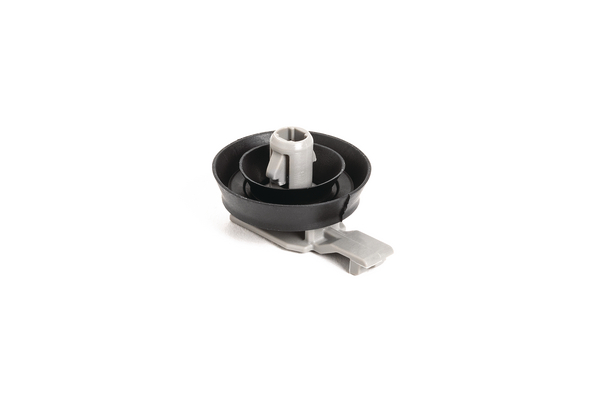

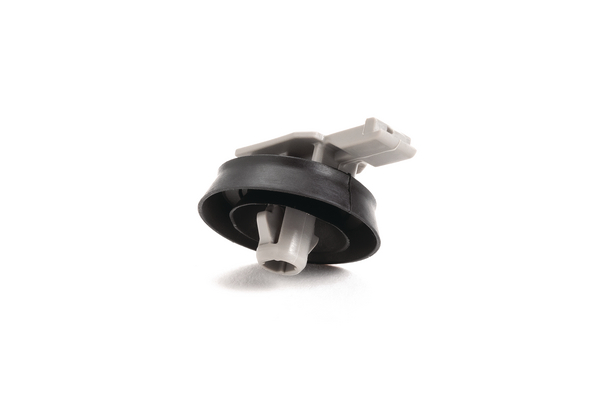

Connector clip, grey/black, 4000pcs.
Art.-No. 151-02080 | SRAH6.5D1.4TCC-PA66HIRHS/TPE-BK/GY |  Details

Integrated dual seal meets IP65 for protection against water, dust, chemicals, air and sound.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Arrowhead locks into place for secure fixing at all times
    Add to watchlist
    Downloads
    Colour Grey (GY), Black (BK)
    Fixation Method arrowhead
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Thermoplastic Elastomer (TPE)
    Pack Cont. 4000pcs.
    Package Content packed in bag
    PART DESCRIPTION SRAH6.5D1.4TCC-PA66HIRHS/TPE-BK/GY
    Type of connection USCAR11
    Variant 6.1 - 6.9 mm
    for Hole ∅ (FH) 6.35 mm (hexagonal), 6.5 mm
    for Panel Thickness min - max 1.2 - 1.8 mm
    Height (H) 15.08mm
    Length (L) 22.3mm
    Panel Thickness max. 1.2 - 1.8mm
    Width (W) 22.3mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +110 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026725789
    Packaging 1 - Weight (kg) 0.003kg
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60643m
    Packaging 3 - Qty 4000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0504m³
    Packaging 3 - Weight (kg) 4.55kg
    Packaging 3 - Width (m) 0.39688m
    Packaging 4 - Qty 120000
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
