01/10/2026

Bundling clip for edge, L=58.0mm, black, 500pcs.


Art.-No. 151-02532

| TC58CIC-PP-BK

 |

Copied
1168518
1334140

    • "Easy assembly, just shuffle manually
    • Designed for edges of 3-5 mm
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered steel spring
    • ATS fixing elements can be tied automatically with tools ATS3080, AT2000 or AT2000CPK"
    Add to watchlist

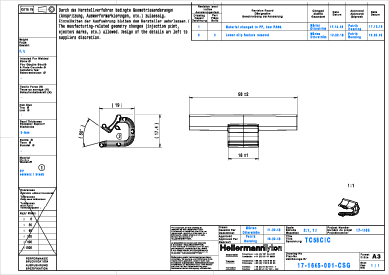

    Downloads CAD-Download
    Colour Black (BK)
    Material Polypropylene (PP)
    PART DESCRIPTION TC58CIC-PP-BK
    Package Content 500pcs.
    Package Content packed in bag
    Product Family 3,0 - 5,0 mm
    Product Group Bundling Clips for edges
    Type TC58CIC
    Typical Application EdgeClips are used in the automotive industries and electrical industries and when it is impossible to drill holes or no other fixing points are available.
    Weight/Unit 0.001905kg
    Bundling Bar Length 58.0mm
    Height (H) 17.4mm
    Length (L) 58.0mm
    Panel Thickness 3.0 - 5.0mm
    Width (W) 19.0mm
    for Panel Thickness min - max 3 - 5 mm
    ELV compliant (Article 4 - 2) Yes
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026611112
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 0.974315kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 6.81189kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.204m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.156m³
    Packaging 4 - Weight (kg) 158.26kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
