Bundling clip for hole (oval), L=34.5mm, black, 1000pcs.


Art.-No. 151-02794

| TCH-PM712V-PA66HS-BK

 |

Copied

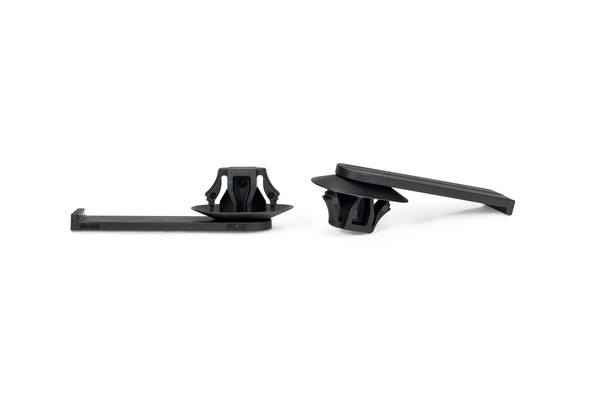

1085085

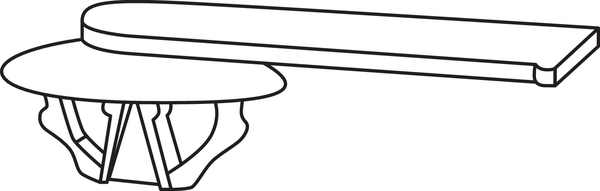

826777

    • Arrow head ,low push in force and high pull out force
    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method arrowhead
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION TCH-PM712V-PA66HS-BK
    Package Content 1000pcs.
    Package Content packed in bag
    Product Family Bundling Clips
    Product Group Bundling clip for oval hole
    Type TCH-PM712V
    Typical Application Half Tape Clip to bundle harness
    Weight/Unit 0.001404kg
    Bundling Bar Length 34.5mm
    Fixing Hole Shape Oval
    Height (H) 12.5mm
    Length (L) 45.0mm
    Panel Thickness 0.5-2.6mm
    Width (W) 16mm
    for Hole ⌀ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 0.5 - 2.6 mm
    ELV compliant (Article 4 - 2) Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026618135
    Packaging 1 - Height (m) 0.07m
    Packaging 1 - Length (m) 0.39m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0080535m³
    Packaging 1 - Weight (kg) 1.424kg
    Packaging 1 - Width (m) 0.295m
    Packaging 3 - Height (m) 0.22m
    Packaging 3 - Length (m) 0.57m
    Packaging 3 - Qty 7000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0489m³
    Packaging 3 - Weight (kg) 10.673kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.244m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 140000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.194m³
    Packaging 4 - Weight (kg) 235.46kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
