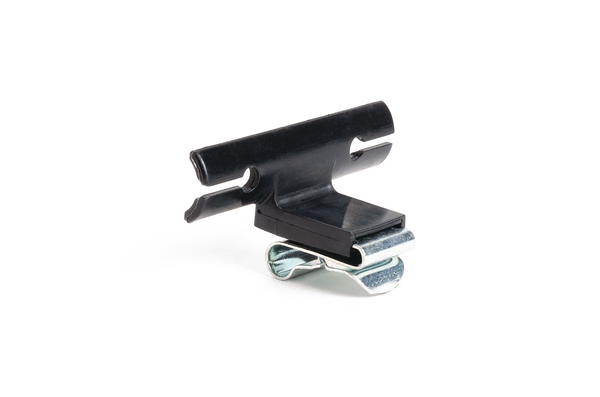

Bundling clip, L=36.25mm, SO=9.2mm, black, 4000pcs.
Art.-No. 133-03524 | TEC50-PA66HIRHSUV/MET-BK

The different fastening orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters

More products in this product group:

Application	Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
Brand Family	EC-Series
Color	Black (BK)
Description	HellermannTyton’s edge clips are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. These edge clips are molded to a tape bar, which can be secured to cables with cable ties or tape. The clip is easy to secure, and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.
PART DESCRIPTION	TEC50-PA66HIRHSUV/MET-BK
Packaging Type	pack
Part No.	133-03524
Product family	Edge Clips, Bundling Clips
Product family	Bundling Clips, Edge fixation products
Short Desc.	Edge Clip and Tape Clip, Panel Thickness 0.03 - 0.08", 1.43" Long, PA66HIRHSUV, Black, 4000/ctn
Type	TEC50
UV Resistant	Yes

Diameter (imperial)	0.16"
Diameter (metric)	4.0mm
Fixation Method	Edge Clip
Height (imperial)	0.3"
Height (metric)	7.5mm
Length (imperial)	0.59"
Length (metric)	15.1mm
Length 2 (imperial)	1.43"
Length 2 (metric)	36.2mm
Max. Bundle Diameter (imperial)	0.31"
Max. Bundle Diameter (metric)	7.8mm
Max. Panel Thickness (imperial)	0.08"
Max. Panel Thickness (metric)	2.0mm
Min. Bundle Diameter (imperial)	0"
Min. Panel Thickness (imperial)	0.03"
Min. Panel Thickness (metric)	0.8mm
Offset Length (imperial)	0.36"
Offset Length (metric)	9.2mm
Panel Thickness (imperial)	0.03 - 0.08"
Panel Thickness (metric)	0.8 - 2.0mm
Tape Bar Length (metric)	36.25mm
Width (imperial)	0.39"
Width (metric)	9.9mm
Width 2 (imperial)	0.59"
Width 2 (metric)	15.1mm

CE Certification	No
CSA Certified	No
Material	PA66HIRHSUV, MET
Material	Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV), Metal (MET)
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Prop65 Warning	No
REACH Conformity	No
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Customs Number (Schedule B)	3926909988
Harmonized Tariff Schedule Code	3926.90.9989
Pkg. Qty.	4000
Pkg. Qty.	4000Pieces
