Connector clip, brown, 1000pcs.


Art.-No. 151-03197

| TRANSMNT90DEG11CC-PA46-BN

 |

Copied
1045801
1896254

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Arrowhead locks into place for secure fixing at all times
    Add to watchlist
    Downloads
    Colour Brown (BN)
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION TRANSMNT90DEG11CC-PA46-BN
    Package Content 1000pcs.
    Package Content packed in carton
    Type TRANSMNT90DEG11CC
    Typical Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement

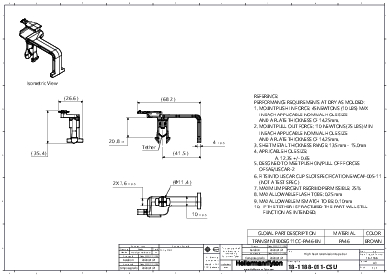

    Height (H) 35.4mm
    Length (L) 68.2mm
    Offset Length 41.5mm
    Panel Thickness 13.5 - 15.0mm
    Width (W) 26.6mm
    for Hole ⌀ (FH) 11.7 - 13.0 mm
    for Panel Thickness min - max 13.5 - 15 mm
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026644332
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 31162305
