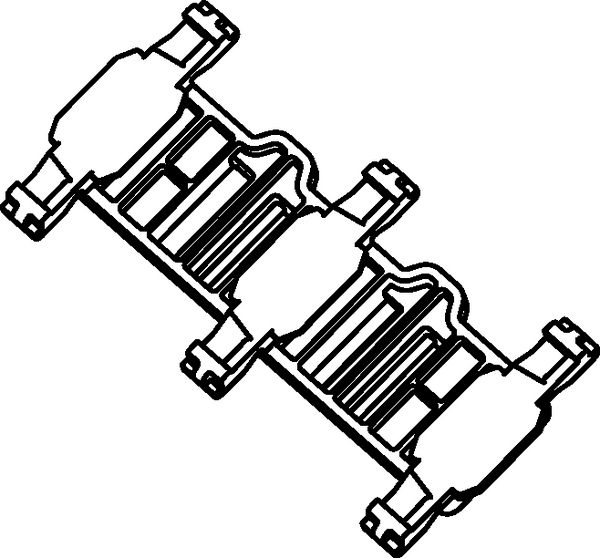

Connector clip for connector, EWCAP-005-11, black, 2000pcs.
Art.-No. 151-03937 | TRIPLE11CCBRKT-PA66HIRHSUV-BK |

Copied
Two-sided triple 11mm USCAR connector bank with 11mm slots for mounts provides exceptional versatility for mounting of connectors.

    • Easy to install by simply pushing into place
    • Connection can be released (non-destructive)
    • One fit tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dust and dirt gaining access
    Add to watchlist
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION TRIPLE11CCBRKT-PA66HIRHSUV-BK
    Package Content 2000pcs.
    Package Content packed in bag
    Type TRIPLE11CCBRKT
    Type of connection USCAR11
    UV-Stabilised Yes
    Weight/Unit 0.006kg

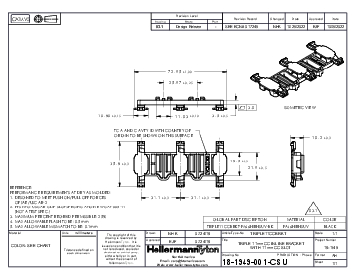

    Height (H) 10.2mm
    Length (L) 73.0mm
    Width (W) 35.8mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Operating Temperature -40 °C to +105 °C
    ROHS compliant No
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026696126
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 2000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 6.6kg
    Packaging 3 - Width (m) 0.2921m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
