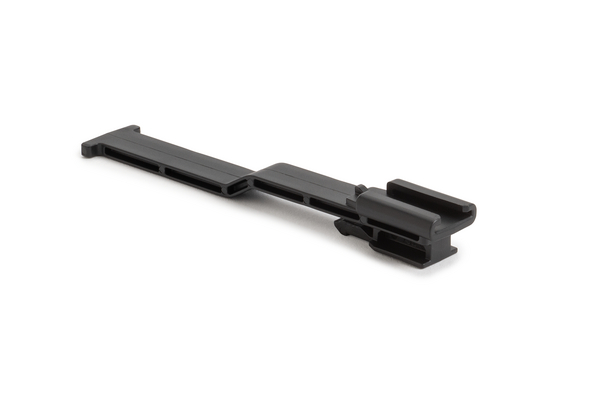

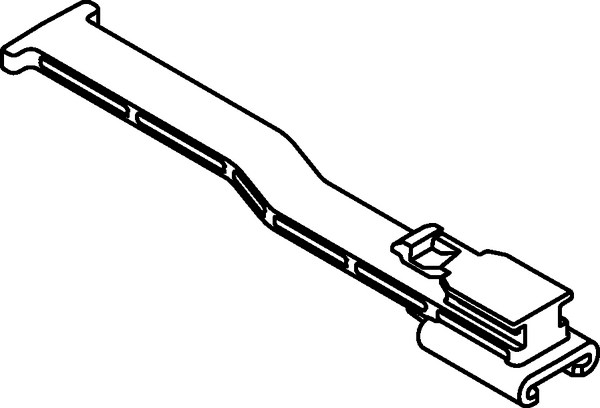

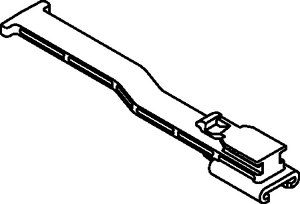

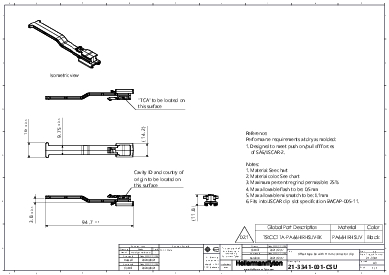

Bundling clip, L=94.7mm, black, 2500
Art.-No. 151-03692 | TSRCC11A-PA66HIRHSUV-BK

Copied
Application Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION TSRCC11A-PA66HIRHSUV-BK
Pack Cont. 2500
Package Content packed in carton
Type TSRCC11A
Type of connection USCAR11
Bundling Bar Length 3.73"
Bundling Bar Length 94.7mm
Height (H) 11.8mm
Length (L) 94.7mm
UV-Stabilised Yes
Width (W) 14.2mm
Width (W2) 16.0mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
Country of Origin MX
GTIN-13 / EAN 4031026689661
Packaging 1 - Type bag
Packaging 3 - Height (m) 0.219075m
Packaging 3 - Length (m) 0.6064m
Packaging 3 - Qty 2500
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0529
Packaging 3 - Weight (kg) 9.8kg
Packaging 3 - Width (m) 0.3984625m
Packaging 4 - Qty 75000
Packaging 4 - Type pallet
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
