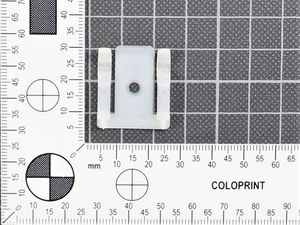

Cable clip, ⌀3.2 mm, Dmax=3.0mm

Art.-No. 151-22819

| TY8H1-PA66-NA

|

Fixing clip TY8H1(S) - screw fix or self adhesive.

Designed to hold cables, tubes or conduits without cable tie
Simply screwed or stuck (TY8H1S) onto panel
Side gripping fingers exert firm hold but allow for easy cable removal

Add to watchlist

Downloads CAD-Download

More products in this product group:

Self Adhesive / Screw Fixing Clips

Base Data

Application	Ideal for holding ribbon cables in computer equipment, gaming machines or domestic appliances.
Colour	Natural (NA)
Fixation Method	screw-hole
Material	Polyamide 6.6 (PA66)
PART DESCRIPTION	TY8H1-PA66-NA
Package Content	100pcs.
Package Content packed in	pcs.
Product Family	TY8H1 with flat design
Product Group	Self Adhesive / Screw Fixing Clips
Short Description	Fixing Screw with flat design 26x24 mm natural
Type	TY8H1
Typical Application	Ideal for holding ribbon cables in computer equipment, gaming machines or domestic appliances.
UV-Stabilised	No
Variant	Closed
Weight/Unit	0.001141kg

Product Dimensions

Bundle ⌀	3.0mm
Bundle ⌀ max.	3.0mm
Height (H)	6.5mm
Length (L)	26.0mm
Nominal ⌀	3mm
Width (W)	23.0mm
for Hole ⌀ (FH)	3.2 mm

Specifications

ELV compliant (Article 4 - 2)	Yes
Flammability	UL 94 V2
Hazardous Goods	No
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	DE
Customs Number	39269097
GTIN-13 / EAN	4031026122304
Packaging 1 - Height (m)	0.03m
Packaging 1 - Length (m)	0.26m

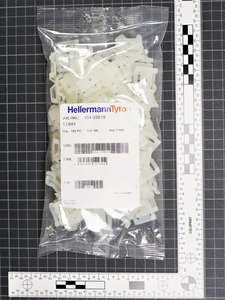

Packaging 1 - Qty	100
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.001014m³
Packaging 1 - Weight (kg)	0.1211kg
Packaging 1 - Width (m)	0.13m
Packaging 3 - Height (m)	0.171m
Packaging 3 - Length (m)	0.56m
Packaging 3 - Qty	2000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0172m³
Packaging 3 - Weight (kg)	2.615128kg
Packaging 3 - Width (m)	0.18m
Packaging 4 - Height (m)	1.152m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	96000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.106m³
Packaging 4 - Weight (kg)	147.52kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
