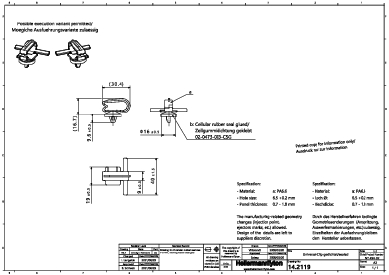

Bundling clip for hole (round), L=40.0mm, black, 500pcs.
Art.-No. 151-00630 | Universal Clip sealed-PA66HS-BK

Copied

    • The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.
    Add to watchlist
    Downloads
    Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
    Color Black (BK)
    PART DESCRIPTION Universal Clip sealed-PA66HS-BK
    Packaging Type bag
    Part No. 151-00630
    Product family Arrowhead, Bundling Clips, Omega Clips
    Product family Bundling Clips, Products for wires and hoses, Sealed products
    Type Universal Clip sealed
    Fixation Method Arrowhead
    Height (metric) 26.3mm
    Length (metric) 30.4mm
    Max. Panel Thickness (metric) 1.8mm
    Min. Panel Thickness (metric) 0.7mm
    Mounting Hole Diameter (metric) 6.5 mm
    Mounting Hole Shape Round
    Panel Thickness (metric) 0.7 - 1.8mm
    Tape Bar Length (metric) 40.0mm
    Width (metric) 40.0mm
    Material PA66HS
    Material Polyamide 6.6 heat stabilized (PA66HS)
    REACH Conformity Yes
    ROHS compliant Yes
    Customs Number (Schedule B) 3926909988
    Packaging 1 - Weight (kg) 1.203135kg
    Pkg. Qty. 500
    Pkg. Qty. 500Pieces
    Art.-No.: 151-00630 Contact
    Base Data Product Dimensions Material and Specifications Logistic and Packaging Downloads
