23/07/2025

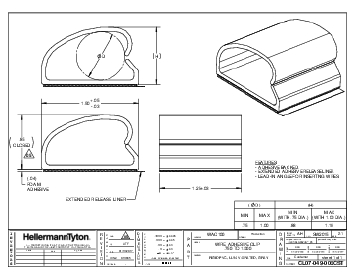

Cable clip, Dmin=19.1mm, Dmax=25.4mm
Art.-No. 151-00669 | WAC100-PVC-GY |

Copied
Series 52 adhesive cable clamp.

    Package size
    Add to watchlist
    Downloads
    Colour Grey (GY)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION WAC100-PVC-GY
    Package Content 100pcs.
    Package Content packed in pack
    Type WAC100
    UV-Stabilised No
    Bundle ⌀ 19.1-25.4mm
    Bundle ⌀ max. 25.4mm
    Bundle ⌀ min. 19.1mm
    Height (H) 21.6mm
    Height (H2) 34.3mm
    Length (L) 38.1mm
    Thickness of Adhesive (TA) nom. 0.036"
    Thickness of Adhesive (TA) nom. 0.91mm
    Width (W) 31.8mm
    Adhesive Self adhesive
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0 (excluding adhesive)
    Operating Temperature +50 °C
    ROHS compliant No
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026725666
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
