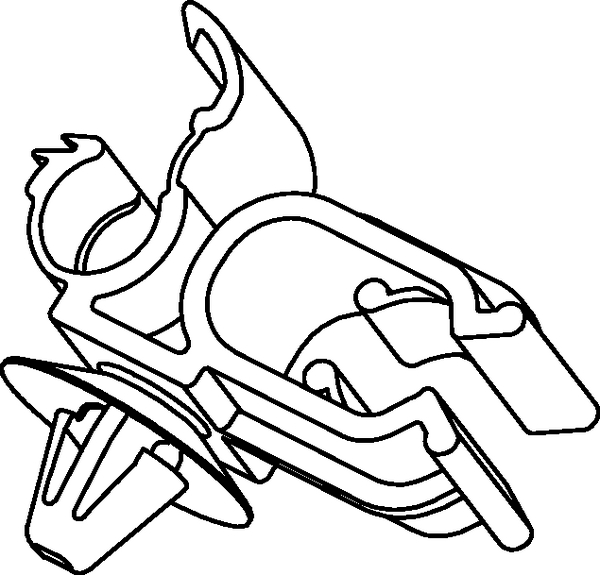

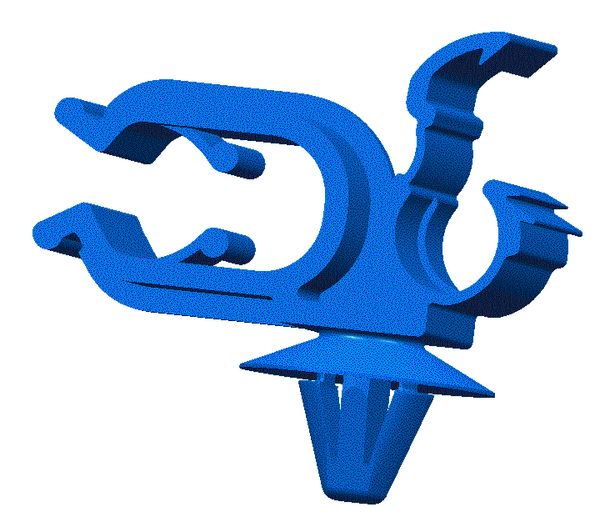

Corrugated tube clip for hole (round), nom⌀8.0mm, black, 500pcs.

Art.-No. 150-56898

| WSFT6-PA66HIRHS-BK

|

The article was designed for parallel cable routing.
The pipes are routed securely, which ensures and a reliable hold.
At the same time, the well thought-out design enables quick and easy maintenance, as the cables can be easily replaced if necessary

Add to watchlist

Downloads

Base Data

Application	Convoluted pipe holder for multiple routing for round holes
Anti rotation (Yes / No)	NO
Colour	Black (BK)
Fixation Method	with Arrowhead / Push Mount (Mounts)
Key product features	for convoluted tubes or with rib, for multiple routing, reusable
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	WSFT6-PA66HIRHS-BK
Package Content	500pcs.
Package Content packed in	pcs.
Short Description	Convoluted pipe holder for multiple routing for round holes, PA6.6 impact modified heat stabilised black
Type	WSFT6
Weight/Unit	0.00265kg

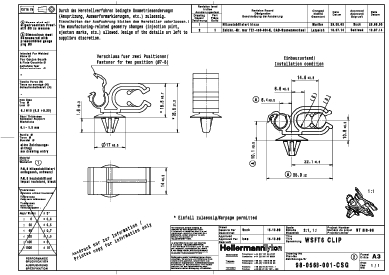

Product Dimensions

Attach to ⌀	3 x 8.0
Bundle ⌀	8.00mm
Bundle ⌀ max.	8.00mm
Disc ⌀	17.0mm
Fixing Hole Shape	Circular
Height (H)	26.5mm
Length (L)	35.9mm
Nominal ⌀	8.0mm
Panel Thickness	0.5 - 1.3mm
Width (W)	14.0mm
for Hole ⌀ (FH)	6.5 mm
for Panel Thickness min - max	0.5 - 1.3 mm

Specifications

ELV compliant (Article 4 - 2)	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	DE
Customs Number	39269097
GTIN-13 / EAN	4031026192154
Packaging 1 - Height (m)	0.3m
Packaging 1 - Length (m)	0.625m
Packaging 1 - Qty	500
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.0825m³
Packaging 1 - Weight (kg)	1.378478kg
Packaging 1 - Width (m)	0.44m
Packaging 2 - Type	carton
Packaging 3 - Height (m)	0.368m
Packaging 3 - Length (m)	0.584m
Packaging 3 - Qty	4000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.083m³
Packaging 3 - Weight (kg)	11.898624kg
Packaging 3 - Width (m)	0.386m
Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	48000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	164.74kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	31162906
