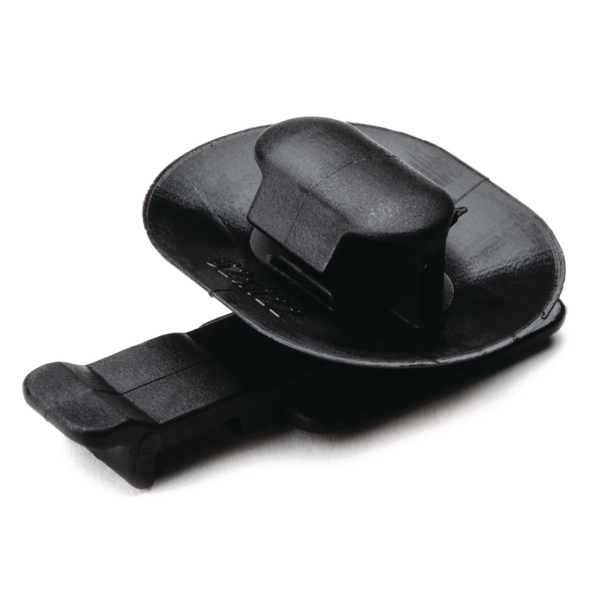

Connector clip for hole (oval), EWCAP-005-11, black, 10000pcs.
Art.-No. 151-00833 | YCCKSFT62x122PT0.7-1.3 90°-PA66HIRHS-BK

Copied

    • HellermannTyton Connector Clips provide a single method to mount connectors to various surfaces in a variety of applications.
    • Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
    • An assortment of Connector Cips is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
    Add to watchlist
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Color Black (BK)
    Description Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
    PART DESCRIPTION YCCKSFT62x122PT0.7-1.3 90°-PA66HIRHS-BK
    Packaging Type bag
    Part No. 151-00833
    Product family Arrowhead, Connector Clips, Small Mount Elements, Oval Holes
    Product family Connector Accessory
    Short Desc. Connector Clip with Oval Fir Tree, 90°, 0.7 - 1.3 mm Panel Thickness, 6.2 x 12.2 mm Hole Dia, PA66HIRHS, Black, 10,000/box
    Technical Description Connector Clip, Black
    Type YCCKSFT62x122PT0.7-1.3 90°
    UV Resistant No
    Fixation Method Fir Tree for oval holes
    Height (metric) 11.1mm
    Length (metric) 27.0mm
    Max. Bundle Diameter (imperial) 0"
    Max. Mounting Hole Diameter (imperial) 0.24"
    Max. Panel Thickness (imperial) 0.05"
    Max. Panel Thickness (metric) 1.3mm
    Min. Bundle Diameter (imperial) 0"
    Min. Mounting Hole Diameter (imperial) 0.24"
    Min. Panel Thickness (imperial) 0.03"
    Min. Panel Thickness (metric) 0.7mm
    Mounting Hole Diameter (imperial) 0.24 x 0.48 "
    Mounting Hole Diameter (metric) 6.2 x 12.2 mm
    Mounting Hole Shape Oval
    Panel Thickness (imperial) 0.03 - 0.05"
    Panel Thickness (metric) 0.7 - 1.3mm
    Slot Size (W2) 11.0mm
    Width (metric) 21.0mm
    CE Certification No
    CSA Certified No
    Material PA66HIRHS
    Material Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
    Operating Temperature -40°F to +221°F (-40°C to +105°C)
    REACH Conformity Yes
    ROHS compliant Yes
    Customs Number (Schedule B) 3926909988
    Harmonized Tariff Schedule Code 3926.90.9989
    Packaging 1 - Weight (kg) 8.759kg
    Pkg. Qty. 10000
    Pkg. Qty. 10000Pieces
