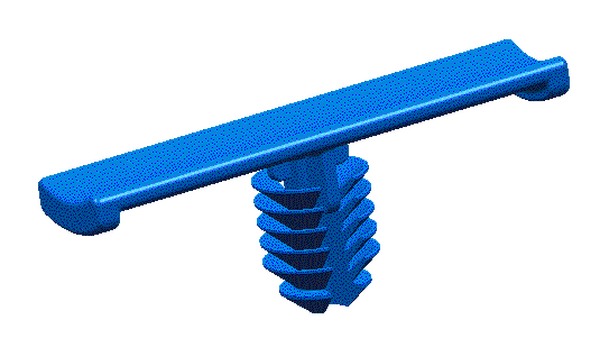

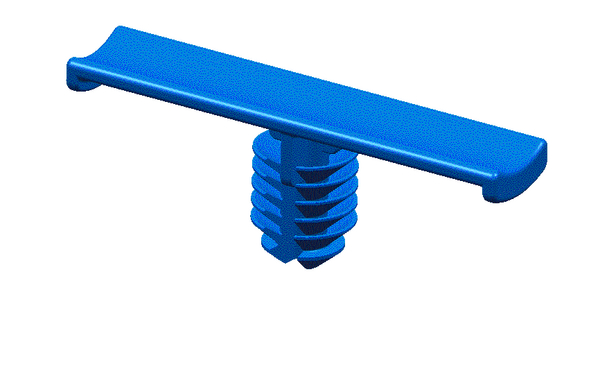

Bundling Clips with Fir Tree Type: TC4FT6LG

Bundling Clip for round holes 6.5 mm, bar length 37 mm.

Images (5)

Add to watchlist

151-00487

Sustainable

Base Data

Colour

Black (BK)

Fixation Method

Plug-in mounting

Material

Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)

Package Content

10000pcs.

Package Content packed in

bag

PART DESCRIPTION

TC4FT6LG-PA66HIRHS-BK

Product Family

Bundling Clips with Fir Tree

Product Group

Bundling Clips for round and oval holes

Product Dimensions

Bundling Bar Length

37.0mm

for Hole ⌀ (FH)

6.3 - 7.0 mm

for Panel Thickness min - max

0.6 - 5.1 mm

Length (L)

37.0mm

Panel Thickness

0.6 - 5.1mm

Specifications

Flammability

UL 94 HB

Operating Temperature

-40 °C to +105 °C

Specifications

Logistics and Packaging

Country of Origin

GTIN-13 / EAN

4031026285184

Packaging 1 - Height (m)

0.223m

Packaging 1 - Length (m)

0.583m

Packaging 1 - Qty

10000

Packaging 1 - Type

bag

Packaging 1 - Volume (m³)

0.048753375m³

Packaging 1 - Weight (kg)

10.0000kg

Packaging 1 - Width (m)

0.375m

Packaging 3 - Height (m)

0.22m

Packaging 3 - Length (m)

0.58m

Packaging 3 - Qty

10000

Packaging 3 - Type

carton

Packaging 3 - Volume (m³)

0.0485m³

Packaging 3 - Weight (kg)

10.70kg

Packaging 3 - Width (m)

0.38m

Packaging 4 - Height (m)

1.09m

Packaging 4 - Length (m)

1.16m

Packaging 4 - Qty

200000

Packaging 4 - Type

pallet

Packaging 4 - Volume (m³)

0.961m³

Packaging 4 - Weight (kg)

234.0kg

Packaging 4 - Width (m)

0.76m

More Information

ETIM 7.0 Key

EC000127

ETIM 8.0 Key

EC000127

ETIM 9.0 Key

EC000127

UNSPSC Key

39121702
