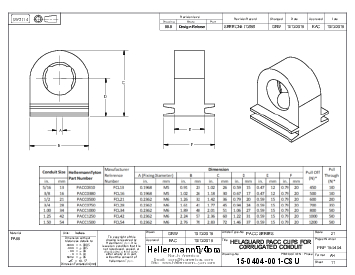

Accessory, HelaGuard®, black, 10pcs. (PACC1250)
Art.-No. 166-90182
| PACC1250-PA66-BK
Copied
- Integrated flip open lid for quick and easy assembly.
- Inner rib prevents conduit from slipping.
- Easy access mounting hole reduces installation time.
- Quick release for easy future access.
| Brand Family | HelaGuard® |
| Color | Black (BK) |
| Description | Conduit Clips clamp onto corrugated conduits and tubing to secure. Nylon material resists corrosion and chemicals. Conduit clips can also be used on C-shaped DIN rails. |
| PART DESCRIPTION | PACC1250-PA66-BK |
| Packaging Type | pack |
| Part No. | 166-90182 |
| Short Desc. | HelaGuard® PACC Conduit Clip,1.25" Dia, PA66, Black, 5/pkg |
| Type | PACC1250 |
| UV Resistant | No |
| Fits Conduit Size | 1-1/4 " |
| Fits Conduit Size (metric) | 42mm |
| Height (imperial) | 2.36" |
| Height (metric) | 60mm |
| Length (imperial) | 2.24" |
| Length (metric) | 57mm |
| Max. Bundle Diameter (imperial) | 0" |
| Min. Bundle Diameter (imperial) | 0" |
| Mounting Hole Diameter (imperial) | 0.24 " |
| Mounting Hole Diameter (metric) | 6.0 mm |
| Nominal Diameter (imperial) | 1.25" |
| Nominal Diameter (metric) | 42mm |
| Trade Size | 1-1/4 " |
| Width (imperial) | 0.59" |
| Width (metric) | 15mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Halogen Free | Yes |
| Material | PA66 |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature | -58°F to +275°F (-50°C to +135°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
