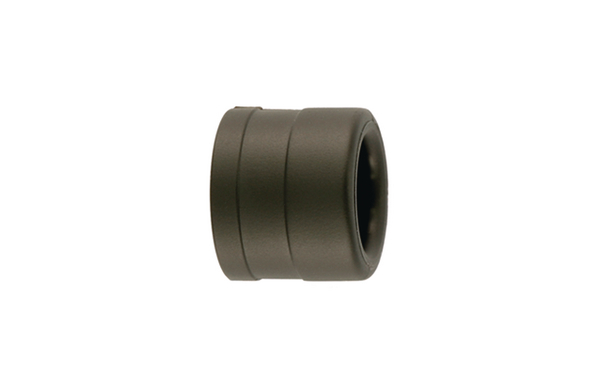

Accessory, HelaGuard®, black, 10pcs. (PAEC0500)
Art.-No. 166-90185 | PAEC0500-PA66-BK

Copied
End cap snaps over non-terminated conduit end with fitting to provide smooth entry point and prevent damage to cables.

    • Snaps over end of conduit when not terminated with fitting to provide smooth entry point and prevent damage to cables.
    • Easy to install; reduces installation time.
    Add to watchlist
    Downloads
    Brand Family HelaGuard®
    Color Black (BK)
    Description Nylon cap snaps over un-terminated conduit ends to prevent damage to wires caused by rubbing against sharp conduit edges. For use with HelaGuard corrugated conduits.
    PART DESCRIPTION PAEC0500-PA66-BK
    Packaging Type pack
    Part No. 166-90185
    Short Desc. HelaGuard® PAEC Conduit End Cap, 0.50" Dia, PA66, Black, 10/pkg
    Type PAEC0500
    UV Resistant No
    Bore Diameter (metric) 15.0
    Bore Hole Diameter (imperial) 0.59"
    Fits Conduit Size 1/2 "
    Fits Conduit Size (metric) 21mm
    Height (imperial) 0.75"
    Height (metric) 19mm
    Max. Bundle Diameter (imperial) 0"
    Min. Bundle Diameter (imperial) 0"
    Nominal Diameter (imperial) 0.5"
    Nominal Diameter (metric) 21mm
    Trade Size 1/2 "
    Width (imperial) 0.93"
    Width (metric) 23.7mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V-2
    Halogen Free Yes
    Material PA66
    Material Polyamide 6.6 (PA66)
    Operating Temperature -58°F to +275°F (-50°C to +135°C)
    Prop65 Warning No
    REACH Conformity Yes
    ROHS compliant Yes
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Customs Number (Schedule B) 3926909988
    Harmonized Tariff Schedule Code 3926.90.9989
    Pkg. Qty. 10Pieces
    Pkg. Qty. 10
